How to Add Gridlines to a Graph in Excel (2 Ways)

You may have created graph in Excel on the basis of some gathered dataset, changed the axis label of the graph, edited the legends of it. But sometimes, you may also need to add gridlines to the graph you have created in your Excel worksheet. In this article, I will show you how to add gridlines to a graph in Excel.


Download Practice Workbook


About Gridlines in Excel Graph

Excel offers the option of adding gridlines to a graph created on the basis of some gathered data. Gridlines of a graph help to visualize the plotted data easily and make the chart reader-friendly. Usually, the graph shows primary horizontal gridlines by default. But you can change this and add gridlines according to your need and choice. Excel also allows you to remove the gridlines from your graph in case you don’t need them.


2 Suitable Ways to Add Gridlines to a Graph in Excel

In this section, you will find 2 suitable and quick ways to add gridlines to a graph in Excel. Let’s check them now!


1. Add Gridlines to a Graph with Chart Design Tab

Let’s say we have got a dataset of sales amounts of three different sales representatives (Mike, Adam, Stephen) of a shop over a certain period of time.

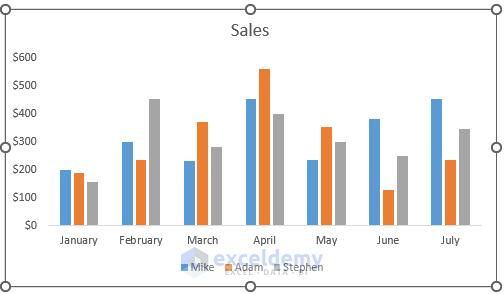

We have made a graph using this dataset.

Adding Gridlines to a Graph in Excel

We want to add gridlines to this created graph. So, for demonstrating this method, proceed with the following steps.

Steps:

  • First of all, Click the chart area and then the Chart Design tab will appear.
  • Now, go to the Chart Design tab> click Add Chart Element from Chart Layout group> select Gridlines> choose a gridline type from the options (i.e. Primary Major Horizontal)

Adding Gridlines to Excel Graph

  • Here, the gridlines will appear according to your choice.

Add Gridlines to Excel Graph

  • You can choose the all options at a time (i.e. Major & Minor of Horizontal and Vertical) and your graph will look like the screenshot below.

Add Gridlines to a Graph in Excel

These simple steps allow you to add gridlines to your graph in an Excel workbook.


2. Use Chart Elements Button to Add Gridlines to a Graph

For our previous set of data, we will now demonstrate another method for adding gridlines to a graph. Here, we will show the use of the chart elements button that appears as soon as a graph/chart is created on the basis of some gathered data.

add gridlines in Excel

Here, the (+) sign that appeared at the right-top corner of the graph is called the Chart Elements button.

Now, for adding gridlines to a graph using the Chart Elements button, follow the steps below.

Steps:

  • Firstly, click the Chart Elements (+) sign at the right-top of the graph and the Chart Elements options will appear.

Add Gridlines to a Graph in Excel

  • Then, select Gridlines from the option and click the right arrow and your gridlines options will show up. Mark any of the options (i.e. Primary Major Horizontal).

  • Here, Excel allows you to mark all types of gridlines at a time and your graph will show them all.


Modification in Gridlines of Excel Graph

After adding gridlines you can perform some modification tasks to the gridlines. Let’s discuss a couple of them.


Changing Interval of Gridlines

You can change the interval of the gridlines of the graph/chart you have created in Excel. For doing so:

  • Firstly, double click on the axis value, and the Format Axis dialogue box will show up at the right end of the worksheet.

  • Now, from the Axis Options icon, change the value of the Major and the Minor units.

Hence, your gridline interval will be changed.


Format Gridlines

You can format the gridlines you have added to your chart. For this:

  • Firstly, click the Chart Elements button> select Gridlines> click More Options.

  • Then, the Format Major Gridlines dialogue box will show up. From here, you can format your gridlines.


Remove Gridlines from Graph

As you can add gridlines to your graph, Excel also allows you to remove the gridlines you have added. Removing gridlines is also as simple as adding them. For removing gridlines from your graph, proceed as below:

  • Here, all you have to do is click on the graph> go to the Chart Design tab> click Add Chart Element> select Gridlines> click the selected gridline to unselect it (i.e. Primary Major Horizontal if it is selected).
  • If more than one gridline is selected then repeat the process for unselecting each of the selected gridlines.

  • Again, you can also remove gridlines by using the Chart Elements option. Just click the Chart Elements button> unmark the Gridlines option.

And your gridlines will be vanished.


Things to Remember

  • Excel allows you to add major as well as minor gridlines for a better visualization of the plotted data.
  • The process of adding and removing gridlines is same.

Conclusion

In this article, you have learned how to add gridlines to a graph in Excel. I hope from now on you can quickly add gridlines to a graph in an Excel workbook. If you have any better methods or questions or feedback regarding this article, please don’t forget to share them in the comment box. This will help me enrich my upcoming articles. For more queries, kindly visit our website ExcelDemy. Have a great day!
