How to Update Charts in PowerPoint from Excel Automatically

Get FREE Advanced Excel Exercises with Solutions!

If you are working for a company or organization, presenting your business ideas and thoughts about various projects and their updates is very common to you. Microsoft Excel and PowerPoint are ubiquitous tools frequently used in these cases. You may have created charts from your data based on your work updates in an Excel sheet. If you want to present this, you have to just copy the chart into a PowerPoint file. But When your data updates with time, the chart in Excel updates automatically, but the chart in the PowerPoint file doesn’t. In this article, I will show you how to update charts from PowerPoint to Excel automatically.

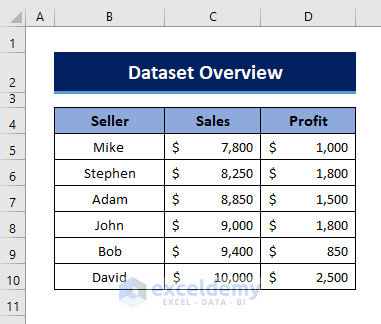

Let’s say, we have a dataset describing the name of some Sellers of an organization, sales, and the profit they made over a certain period.

Dataset to Update Chart in PowerPoint from Excel Automatically

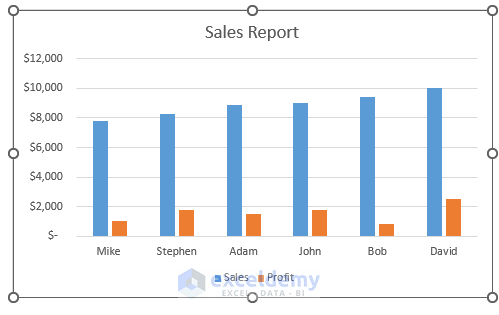

We have made a sales report by creating a chart using this dataset to show the person-wise sales and profit.

Excel Chart to Update it in PowerPoint Automatically.

Now we want to copy that chart into a PowerPoint file and update the chart in the PowerPoint file automatically. In this section, you will find 2 effective ways to update charts in PowerPoint from Excel automatically. Have a quick look to demonstrate the ways with the proper illustration.


1. Updating Charts in PowerPoint by Refreshing Data

Creating a chart in a PowerPoint file introduces a new tab named Chart Design in the PowerPoint file. Here, the Refreshing Data option will be available. Utilizing this option can update data.

Steps:

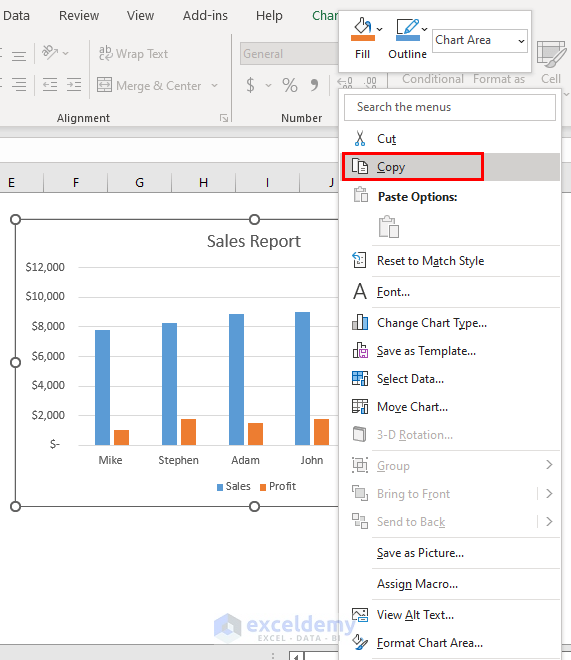

  • First of all, you need to transfer the chart into the PowerPoint file. Just right-click the chart in the Excel file and click Copy in the menu list to copy the chart.

Copy Chart from Excel to PowerPoint

  • Then, go to the PowerPoint file and right-click on the slide where you want to show the chart. Right-click on that slide and select Use Destination Theme & Link Data (L) from the paste options.

Paste Chart in PowerPoint from Excel

  • Hence, the copied chart from Excel will be posted to the PowerPoint file. A new tab in the PowerPoint file named Chart Design will be available now.

  • Now let’s update the chart in the Excel file and see the changes in the ppt file. (In our dataset the Profit made by David was $2500 previously.)

Change Value in Excel Chart to Update Chart in PowerPoint Automatically

  • Change random data (i.e. Profit of David=> $5000) in the table and the chart in the Excel file will update itself immediately.

When you perform this task for the first time, the chart in the PowerPoint file may update automatically by default, But later on, you need to perform some actions to update it.

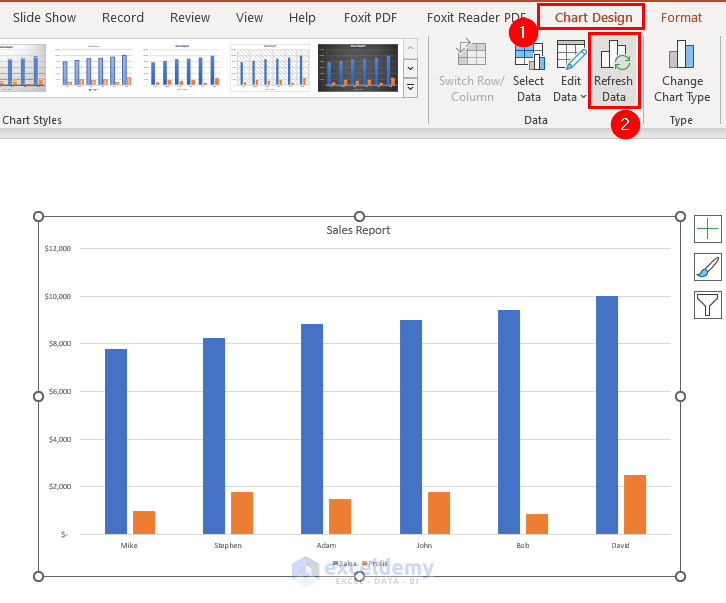

  • Here, click the chart in the PowerPoint file> go t the Chart Design tab> click the Refresh Data option under the Data group.

How to Update Chart in PowerPoint from Excel Automatically

Note: For some versions, you may need to close the Excel file to execute the change.
  • After refreshing the data, you will see that the chart in the PowerPoint file has now updated itself automatically as per the change made in the Excel file.

How to Update Chart in PowerPoint from Excel Automatically

Read More: How to Copy Chart from Excel to PowerPoint Without Link


2. Updating Charts Automatically with “Edit Links to Files” Option

Another way available for updating charts automatically is to utilize the Edit Links to Files option of PowerPoint.

Steps:

  • First, paste the chart in PowerPoint from Excel following these steps of Method 1.
  • After pasting the chart in ppt, click the File tab of the ppt file.

  • Then, a window like the image below will appear with a menu list. At the right-end corner of the Info menu, two options are available in the Related Documents section. Select the Edit Links to Files option from here.

Update Chart in PowerPoint from Excel Automatically

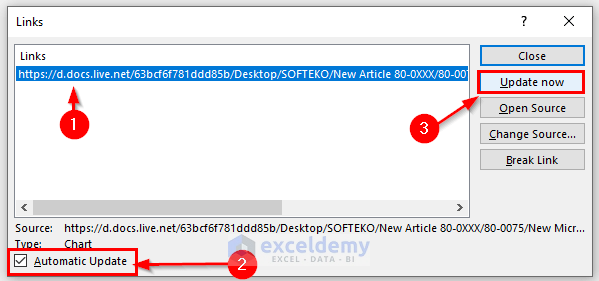

  • After that, a dialog box named Links will appear on that window. Under the Links group, the Excel file will be available. Select the file> mark the Automatic Update option and click Update Now. Now your chart will update automatically.

Update Chart in PowerPoint from Excel Automatically

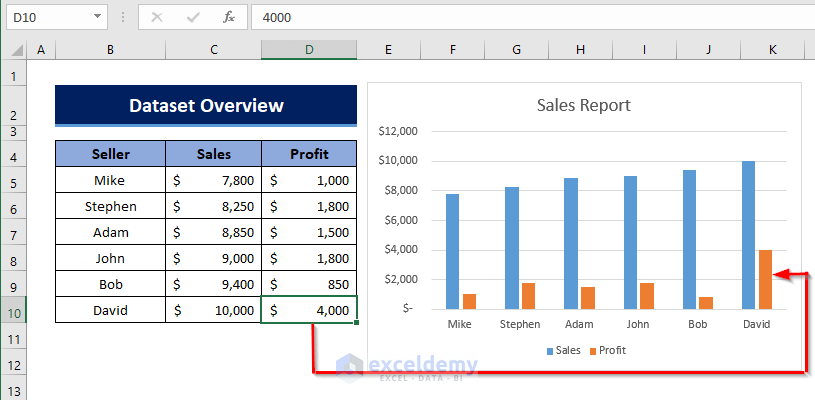

  • After that, make a change in the chart data (i.e. Profit of David $4000) of the Excel file.

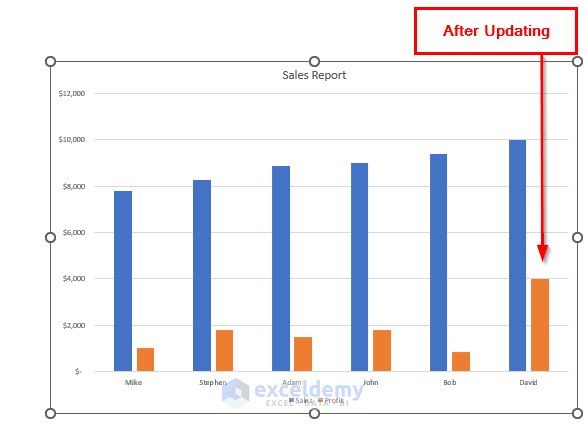

  • Here, your chart in the PowerPoint file will now update automatically.

This procedure is relatively faster than the first Method.

Read More: How to Insert an Excel File into PowerPoint as an Icon


Things to Remember

  • The PowerPoint chart may update automatically for the first time without performing any actions, but from next time you have to perform either of the procedures for updating the chart.
  • For some versions, the Excel file may need to be closed for updating the chart in the ppt file.

Download Practice Workbook

You can download the practice book from the link below.


Conclusion

So these are the two procedures to update charts in PowerPoint from Excel automatically. Hope the article helped you. If you have better methods, questions, or feedback regarding this article, please don’t forget to share them in the comment box.
