# How to Create a Rating Scale in Excel (4 Easy Ways)

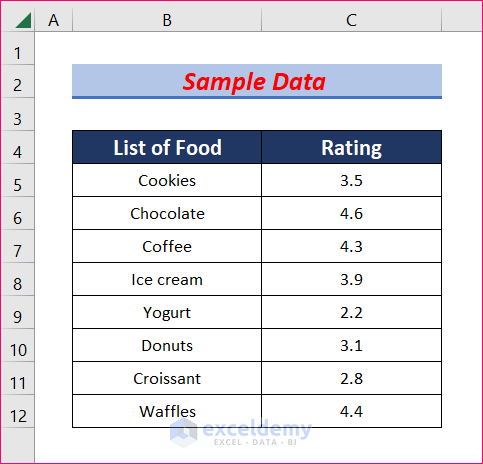

We will use the following dataset to demonstrate how to make a rating scale. It has a number of products and a rating score for each of them.

### Method 1 – Use Conditional Formatting to Create a Star Rating Scale in Excel

Steps:

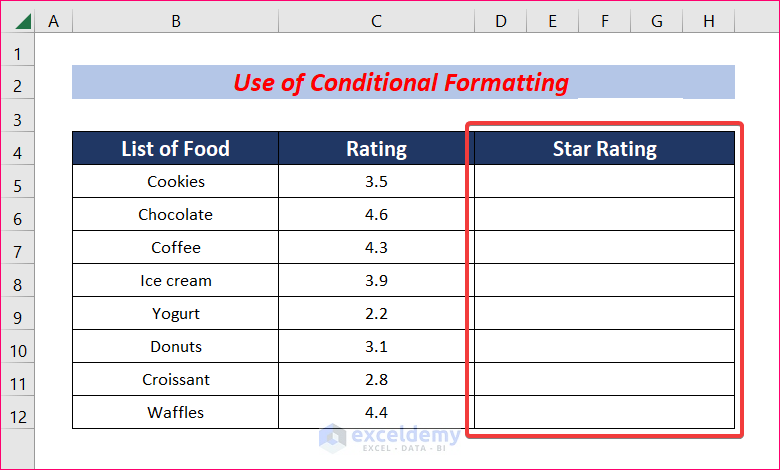

• Insert five helper (result) columns named Star Rating beside the Rating column. Remove the borders between them.

• Write 1 to 5 in cells D14 to H14.
• Select cell D5 and copy the following formula into it:
`=IF(D\$14<=\$C5,1,IF(ROUNDUP(\$C5,0)=D\$14,MOD(\$C5,1),0))`
Formula Breakdown:
• MOD(\$C5,1) returns the remainder after dividing cell C5 by 1.
• IF(ROUNDUP(\$C5,0)=D\$14) rounds up the C5 cell value to 1.
• IF(D\$14<=\$C5,1,IF(ROUNDUP(\$C5,0)=D\$14,MOD(\$C5,1),0)) returns 1 if C5>D14 and returns the decimal part if C5<D14.

• Autofill the formula to the rest of the cells across columns and rows.

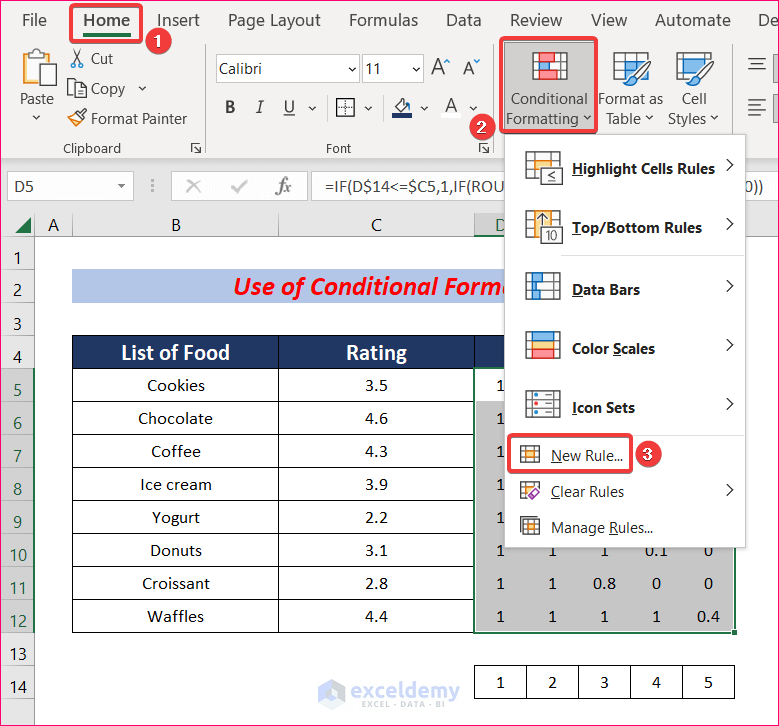

• From the Home tab, go to Conditional Formatting and select New Rule.

• A New Formatting Rule dialogue box will appear. Select Format all cells based on their values.
• Choose Icon Sets in the Format Style option.
• Select 3 Stars as the Icon Style.
• Change the Type to Number.
• Set values to show a filled star, half-filled star, or empty star. We set values 8 and 0.3 in this example. Any value less than 0.3 will show an empty star, a value between 0.3 to 0.8 will show a half-filled star and a filled star will be visible if the value is greater than 0.8.
• Check the box for Show Icon Only and press Enter.

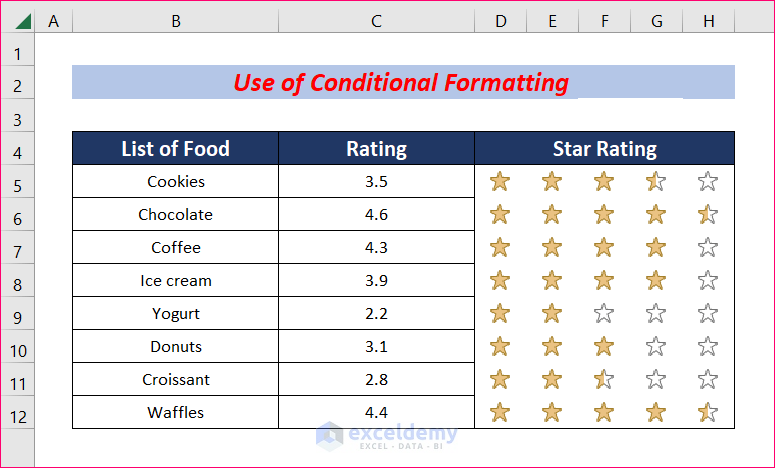

• You will find star ratings for all the food items.

• You can change any of the food ratings and the star rating will automatically get updated.

### Method 2 – Apply the REPT Function

#### Case 2.1 – Add Data Bars to Create a Rating Scale

Steps:

• Insert a column D named Bar Rating.
• Select cell D5 and copy the following formula there:
`=REPT("|",C5*10)`

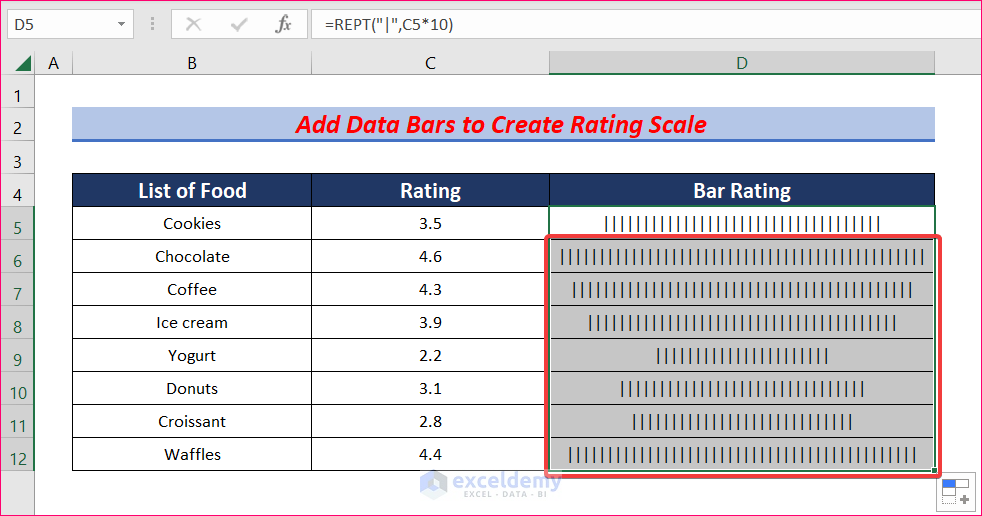

• Autofill the formula to the rest of the cells in column D.

• Select the D column with all the vertical bars and change the text font to Playbill.

• The vertical bars will look like one single wide bar.

• Select column D and from the Home tab, go to Conditional Formatting and pick New Rule.

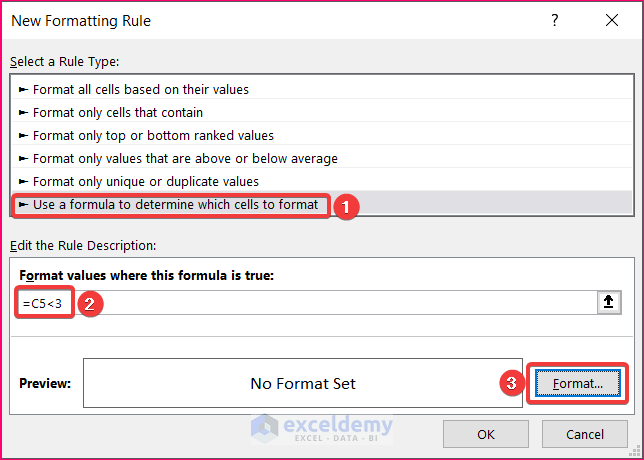

• Select Use a formula to determine which cells to format and insert the following formula.
`=C5<3`
• Go to Format.

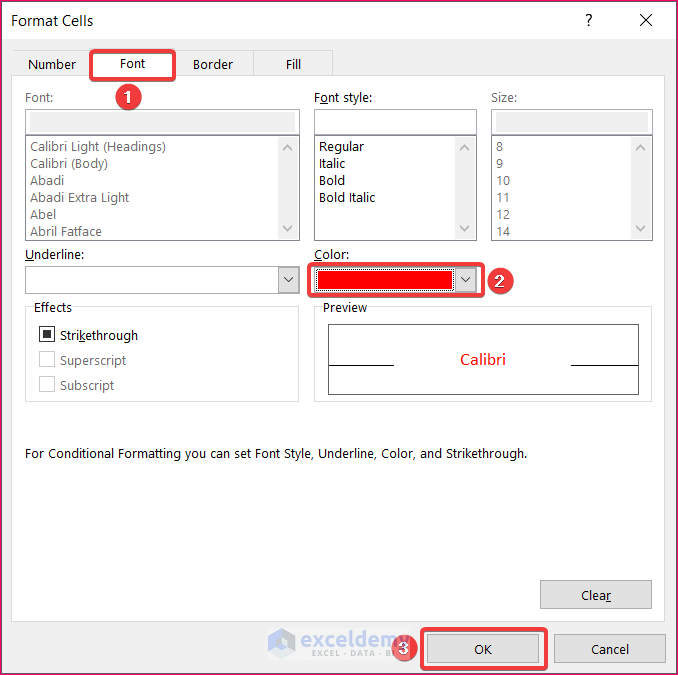

• In the Format Cells box, go to the Font tab and change the Color to Red.
• Click OK.

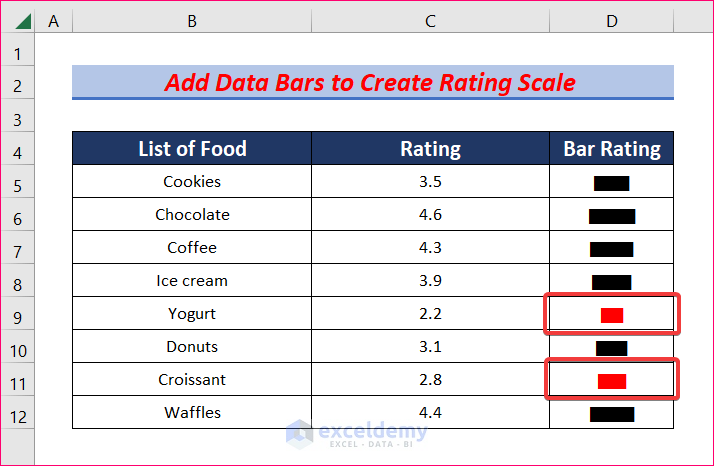

• The bars with ratings lower than 3 will be turned into red.

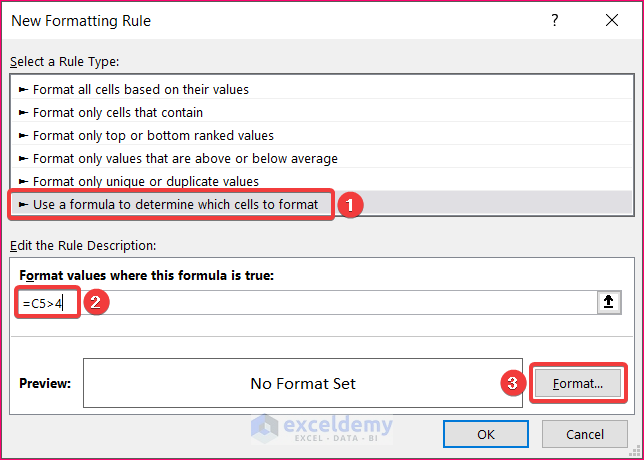

• Insert a New Conditional Formatting Rule with the following formula in the New Format Cells dialogue box.
`=C5>4`

• Select the color Green from the Font tab.

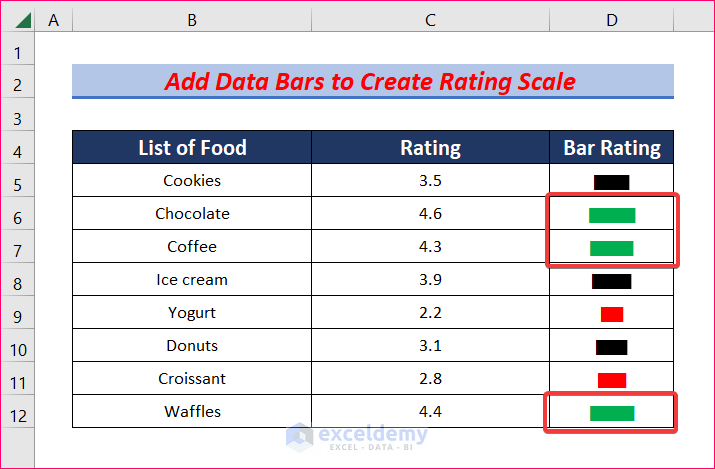

• The bars that represent a rating higher than 4 will turn green.

• Follow the same process to apply the yellow formatting color for values between 3 and 4.
• Increase the font size of the bars and align them to the left.

#### 2.2 – Create a Star Rating Scale

Steps:

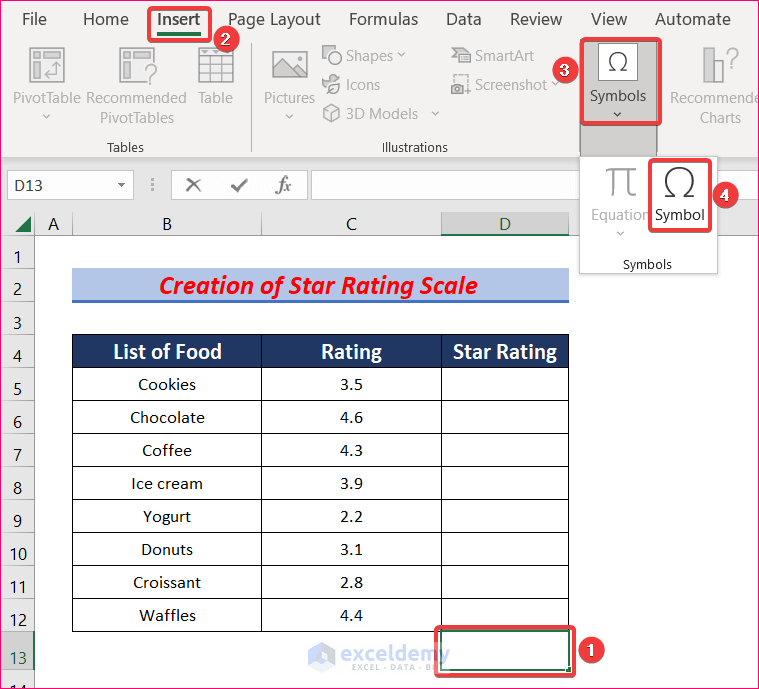

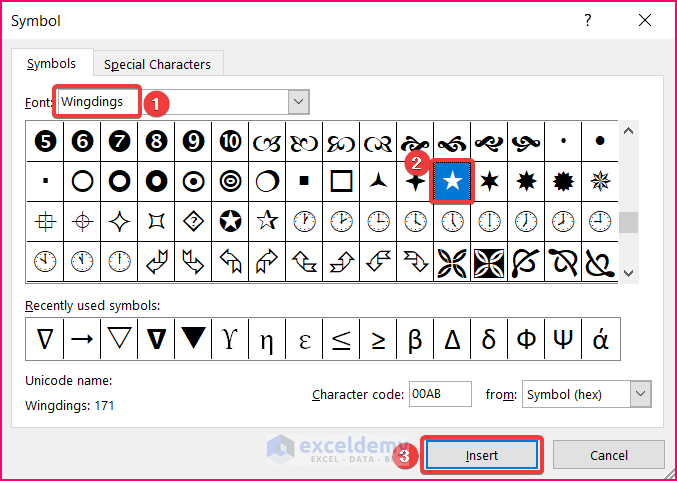

• Select any cell and then go to Insert, then to Symbols, and pick Symbol.

• From the Wingdings font, insert the Star symbol.

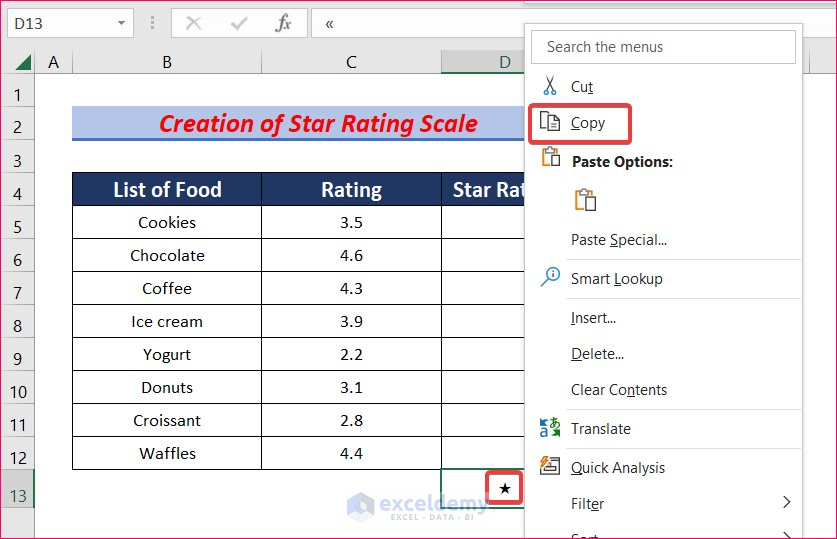

• Copy the star symbol.

• Select cell D5 and copy the following formula there. Paste the copied star between “”.
`=REPT("«",IF(MOD(C5,1)>0.49,CEILING.MATH(C5),C5))`
Formula Breakdown:
• CEILING.MATH(C5) rounds up the C5 cell value to the next integer.
• MOD(C5,1)>0.49 checks if the remainder of cell C5 divided by 1 is greater than 49 or not.

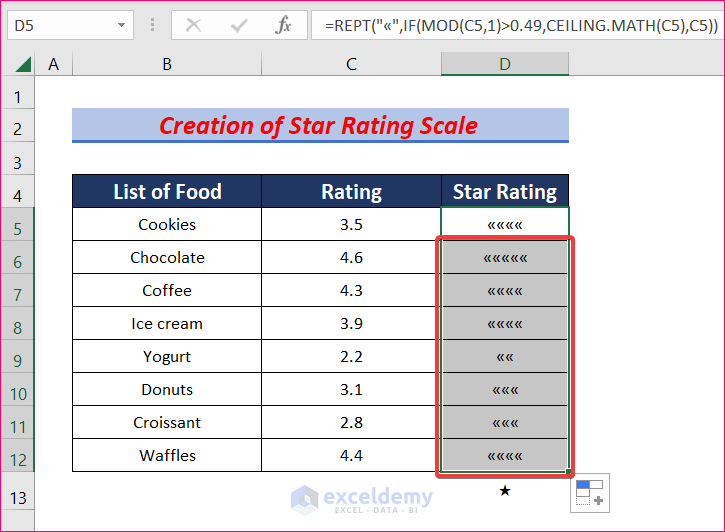

• Autofill the formula to the rest of the cells in column D.

• To convert the “<<” symbol to the Star symbol, select column D and change the font to Wingdings.

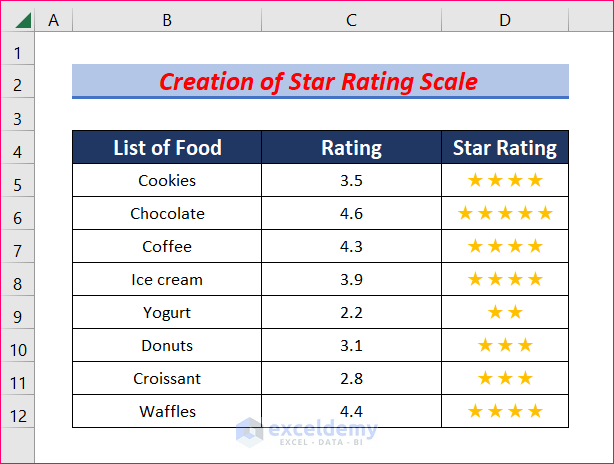

• You will find that all the symbols have now turned into stars.

• Change the font and color of the symbols to enhance their appearance.

• You will get your desired rating scale.

### Method 3 – Use the Form Control Feature to Create a Star Rating Scale

Now we will use the Form Control feature to create a star rating scale in Excel. The procedure is discussed in the following section.

Steps:

• First copy these two symbols (☆★) from here and paste them into two different cells.

• Next, go to the Developer tab, and from there,

Developer → Insert → Form Control → Option Button

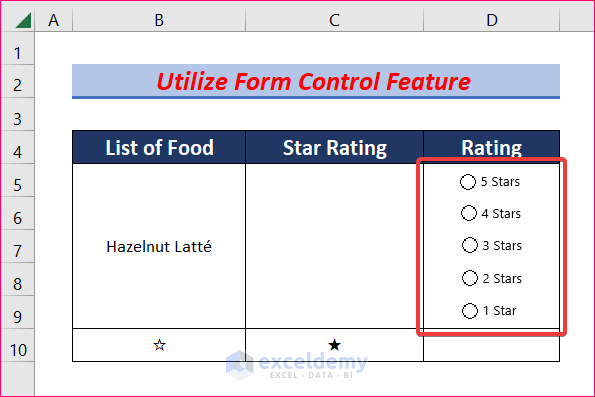

• Click and drag your cursor to insert the Option button in cell D9.

• Then double-click on the text to edit the text beside the button.

• Similarly, add four more buttons to cells D8 to D5.

• Now right-click on any of the buttons and select Format Control.

• The Format Control box will pop up.
• In the box, go to the Control tab and select Unchecked.
• Then choose cell D10 to link the buttons.
• After that, click Ok.

• Next, write down the following formula in the Star Rating column.
`=REPT(B10,5-D10)&REPT(C10,D10)`

• Then from the Home tab, go to,

Home → Alignment → Orientation → Vertical Text

• As a result, the text will be vertically aligned now.
• Finally, change the font and color to improve its look.

• Now if you click on different buttons, the Star Rating will be updated automatically.

### 4. Create Dropdown List to Create a Rating Scale

Steps:

• Create a column and write text ratings from Very Good to Very Poor in the column.

• Select the Rating column and, from the Data tab, go to Data Validation.

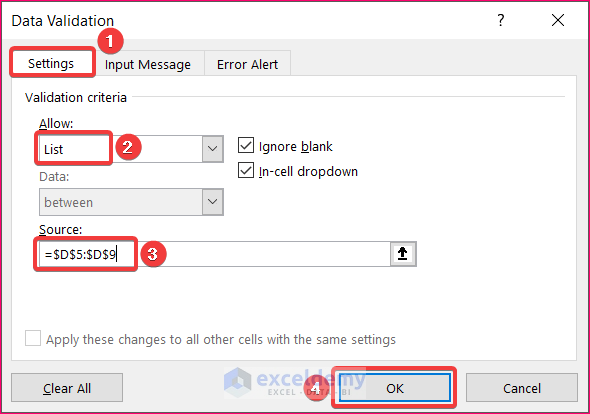

• The Data Validation dialogue box will appear. Go to the Settings tab and select List from Allow option.
• Choose the source as D5:D9 and click OK.

• Select any cell in column C and you will see a dropdown button beside it.
• Click on the dropdown button and you will have all the options to choose from.
• Click on any of the options to rate the food item.

• You can rate all the food items on the list.

Notes

• You can follow the same steps to create rating scales with other symbols.
• Additionally, you can create 1-10 and 1-100 scales following the above procedures.
