How to Flip Bar Chart in Excel (2 Easy Ways)

There are many graphical features available in Microsoft Excel. Users use those features to represent statistical data. The Excel bar chart is one of them. Sometimes, users need to flip bar charts for working purposes. In this article, we will show you how to flip a bar chart in Excel.


Download Practice Workbook

You can download the free Excel workbook here and practice on your own.


2 Handy Ways to Flip Bar Chart in Excel

Our working procedure will consist of two methods. In our first method, we will format the axis of a bar chart to flip the chart. As for the second one, we will apply a VBA code to get the final result. For both procedures, we will use the following data set. Here, we have some random data regarding the sales of a store for eight years. So, in this article, you will see two completely different approaches to the flip bar chart in Excel by using the following data set.

Handy Ways to Flip Bar Chart in Excel

1. Formatting Axis to Flip Bar Chart

This method is really easy and simple. After creating a bar chart in Excel, we will flip the chart by formatting its axis. We will discuss the detailed procedure in the following steps.

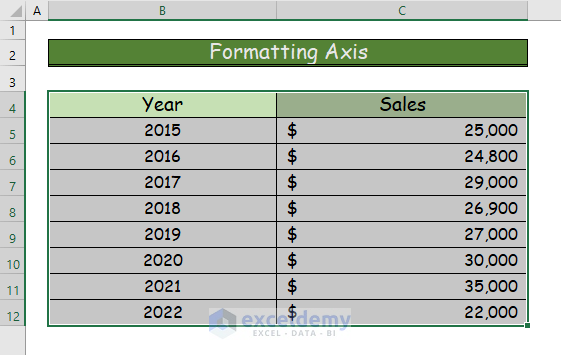

Step 1:

  • First of all, select the cell range from B4:C12.

Handy Ways to Flip Bar Chart in Excel

Step 2:

  • Secondly, go to the Insert tab of the ribbon.
  • Then, click on the little arrow that is on the lower right side of the Charts group.

Handy Ways to Flip Bar Chart in Excel

Step 3:

  • Thirdly, you will see the Insert Chart dialogue box.
  • Then, from the All Charts tab go to Bar.
  • In our procedure, we will choose the Clustered Bar chart like in the following figure.
  • Lastly, press OK.

Handy Ways to Flip Bar Chart in Excel

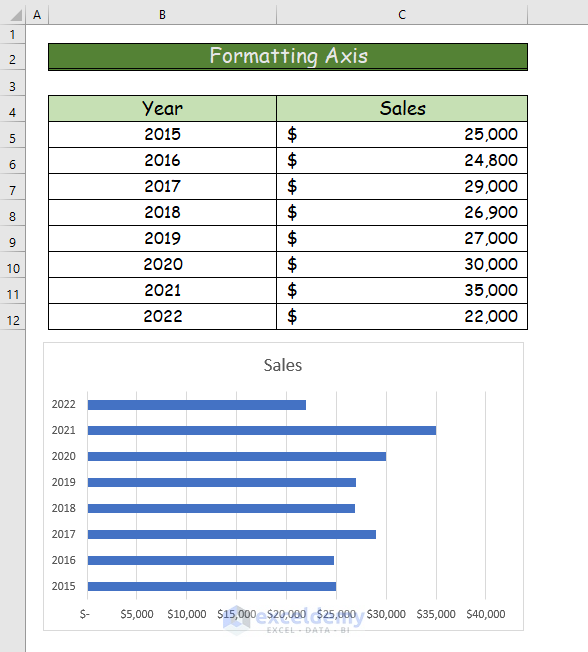

Step 4:

  • Fourthly, you will see a bar chart in the worksheet after following the previous steps.

Handy Ways to Flip Bar Chart in Excel

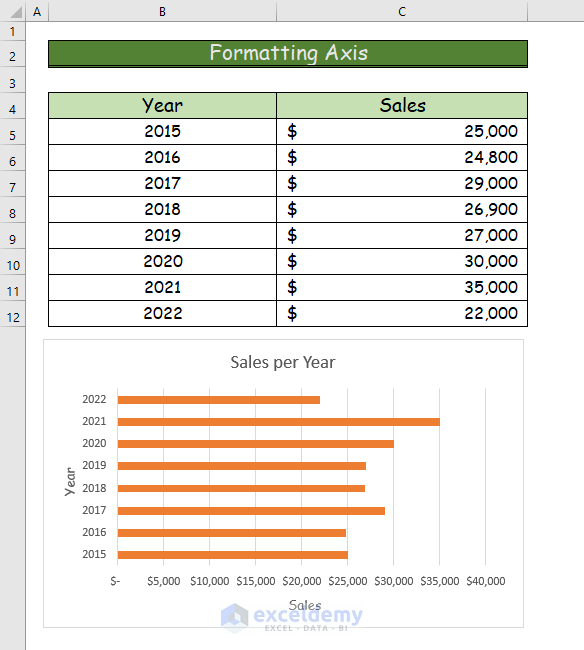

Step 5:

  • Fifthly, name the chart as Sales per Year.

Handy Ways to Flip Bar Chart in Excel

Step 6:

  • In the sixth step, double-click on the lower axis of the chart using mouse.

Handy Ways to Flip Bar Chart in Excel

Step 7:

  • In the seventh step, you will see the Format Axis window panel.
  • From there, go to Text Options.
  • Then, under the Axis Options label, mark the box named Values in reverse order.

Handy Ways to Flip Bar Chart in Excel

Step 8:

  • Finally, you will be able to flip the bar chart after reversing the order.

Handy Ways to Flip Bar Chart in Excel

Read More: How to Flip Axis in Excel (4 Easy Methods)


2. Applying VBA to Flip Bar Chart in Excel

In our second procedure, we will apply a VBA code to flip a bar chart. By applying a VBA code, we will be able to complete our task without formatting. We just have to input the proper command into the code to flip the chart. For a better understanding, go through the following steps.

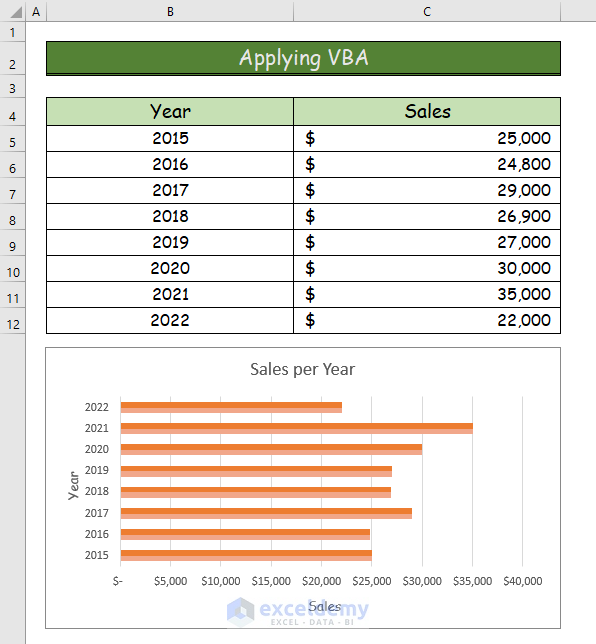

Step 1:

  • Firstly, draw a bar chart by using the following data set.
  • To do this, follow Step 1 to Step 5 from the previous method.

Handy Ways to Flip Bar Chart in Excel

Step 2:

  • Secondly, go to the Developer tab of the ribbon.
  • Then choose the Visual Basic command from the Code group.

Handy Ways to Flip Bar Chart in Excel

Step 3:

  • Thirdly, you will see the VBA
  • Then, from the Insert tab select Module.

Sample Data Set

Step 4:

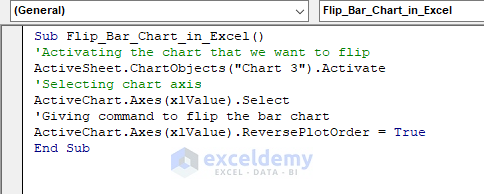

  • Fourthly, copy the following code and paste it into the module.
Sub Flip_Bar_Chart_in_Excel()
'Activating the chart that we want to flip
ActiveSheet.ChartObjects("Chart 3").Activate
'Selecting chart axis
ActiveChart.Axes(xlValue).Select
'Giving command to flip the bar chart
ActiveChart.Axes(xlValue).ReversePlotOrder = True
End Sub

Sample Data Set

VBA Breakdown

  • The function name is Flip_Bar_Chart_in_Excel.
  • ChartObjects(“Chart 3”).Activate: Firstly, selecting and activating the chart that we want to flip.
  • Axes(xlValue).Select: Secondly, selecting the horizontal axis of the chart.
  • Axes(xlValue).ReversePlotOrder = True: Finally, the bar chart will be flipped through this command.

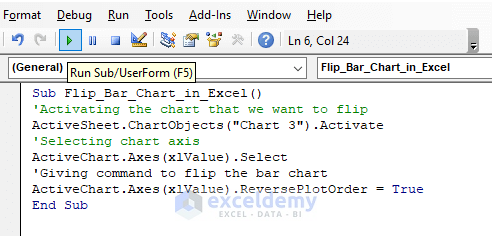

Step 5:

  • Then, save the VBA code and press F5 or the play button to run it.

Sample Data Set

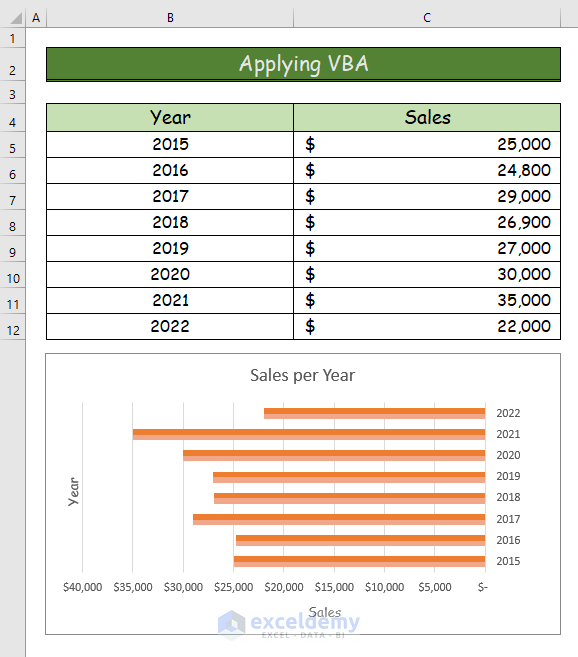

Step 6:

  • Finally, this VBA code will reverse the axis order of the bar chart thus flipping it.

Sample Data Set

Read More: How to Flip Data in Excel Chart (5 Easy Methods)


Conclusion

That’s the end of this article. We hope you find this article helpful. After reading the above description, you will be able to flip bar chart in Excel by using any of the above-described methods. Please share any further queries or recommendations with us in the comments section below. The Exceldemy team is always concerned about your preferences.
