Implementing Data Validation Rules to Ensure Data Integrity in Microsoft Access

Image by Editor


Ensuring data accuracy and consistency is essential when working with relational databases. Microsoft Access offers built-in tools for implementing data validation rules that help prevent errors, reduce inconsistencies, and improve the quality of your database.

In this tutorial, we will show how to implement data validation rules to ensure data integrity in Microsoft Access.

What is Data Validation?

Data validation in Access is the process of defining rules that restrict the type, range, or format of data that users can enter into a field or table. These rules ensure that users provide data that is meaningful, correctly formatted, and within expected boundaries.

• Prevents errors: Avoids incorrect, duplicate, or incomplete data entry.
• Maintains consistency: Ensures a uniform format for data.
• Enforces business logic: Keeps data aligned with rules specific to the organization or process.
• Improves reliability: Enhances reporting and analysis accuracy.

Types of Validation in Microsoft Access

Microsoft Access supports various validation methods:

• Field-Level Validation Rules: Applies to individual fields in a table. Ensures that the data entered into a specific field meets certain criteria.
• Table-Level Validation Rules: Applies to a record in a table and can compare values from multiple fields in that record.
• Input Masks: Controls how data is entered by specifying a pattern (e.g., phone numbers, ZIP codes).
• Lookup Fields: Restricts input to a predefined list or values retrieved from another table.
• Form validation: Controls input at the user interface level.
• Data types: The first line of defense against incorrect data entry.

Field-Level Validation Rules

Define Field Data Types

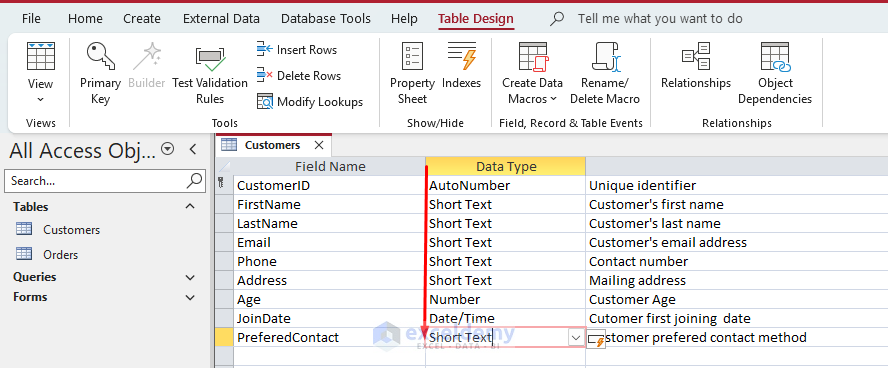

• Open your Access database and navigate to the table design view.
• For each field, select an appropriate data type (Short Text, Number, Date/Time, etc.).

Set Field-Level Validation

• Select your Table.
• Right-click on the table and switch to Design view.
• In table design view, select the field you want to validate.
• In the Field Properties pane, locate the Validation Rule and Validation Text properties.
• Enter the condition in the Validation Rule box.
• Enter a user-friendly error message in the Validation Text box.

Explore Some Examples:

Age must be between 18 and 65:

• Click the (…) dot button next to the Validation Rule to open the Expression Builder.
• Validation Rule: >=18 And <=65

• Validation Text: Age must be between 18 and 65.

Output:

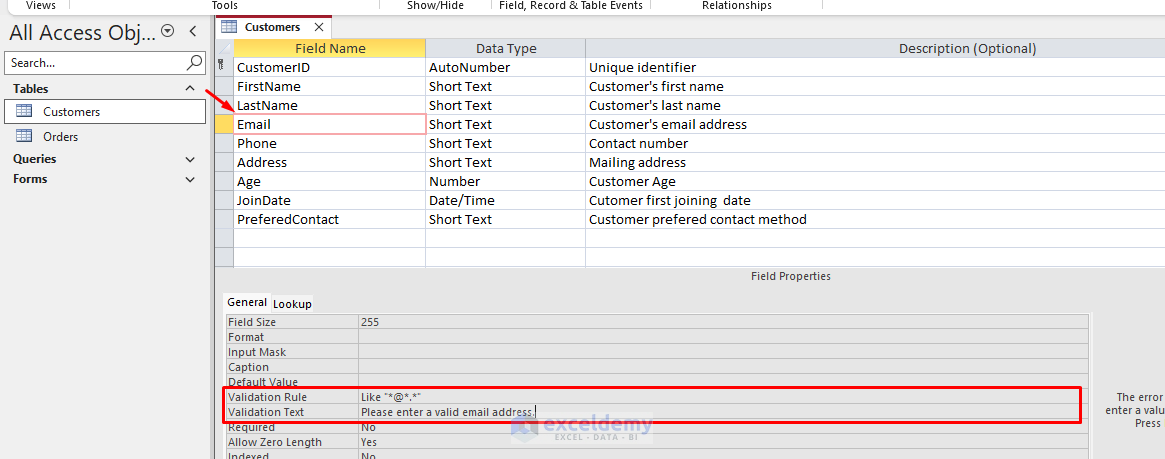

Email must include an @ symbol:

• Validation Rule: Like “*@*.*”
• Validation Text: Please enter a valid email address.

Output:

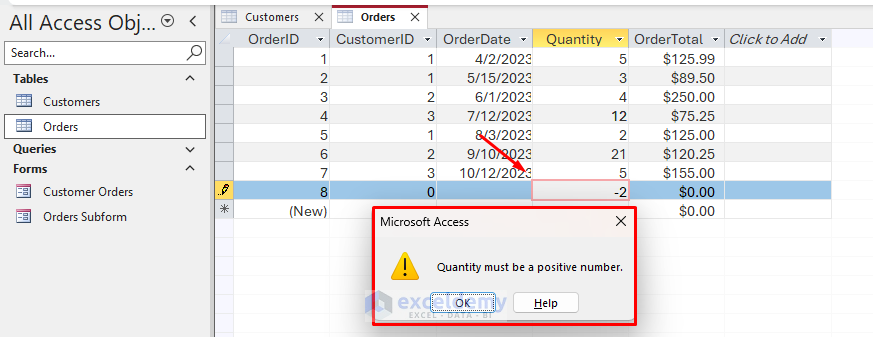

Quantity must be greater than 0:

• Validation Rule: >0
• Validation Text: Quantity must be a positive number.

These rules ensure only valid entries are allowed in the specified fields.

Output:

Table-Level Validation Rules

Table-level rules apply to entire records and allow you to validate based on conditions that span multiple fields.

• Open the table in Design View.
• Go to the Table Design >> select Property Sheet.
• Under Table Properties, find Validation Rule and Validation Text.
• Enter the rule and a descriptive message.

End Date must be after Start Date:

• Validation Rule: [EndDate]>[JoinDate]
• Validation Text: End Date must be later than Join Date.

This rule prevents users from entering an End Date that is earlier than or equal to the Start Date.

Output:

Input Masks for Formatting

Input masks define a specific format for data entry. They are useful for ensuring consistency in phone numbers, postal codes, and dates.

Input masks help users enter data in the correct format:

• Open the table design view.
• Go to the Field Properties >> click the Input Mask property >> click on the (…) dot.
• You can select Input Mask from he existing options, or you can use the Edit option to customize the input mask.

Phone Number (US format)

• To edit the Phone Number >> click on the Edit option.
• Insert the Input Mask: (###) ###-####
• Insert Sample Data.
• Click Finish.

• This forces users to enter phone numbers in the format (123) 456-7890.

Output:

Example:

• Social Security: ###-##-####
• ZIP Code: #####-####

Implement Lookup Fields

Lookup fields restrict values in a field to a list. This reduces entry errors and enforces standardized entries.

• Open the table in Design View.

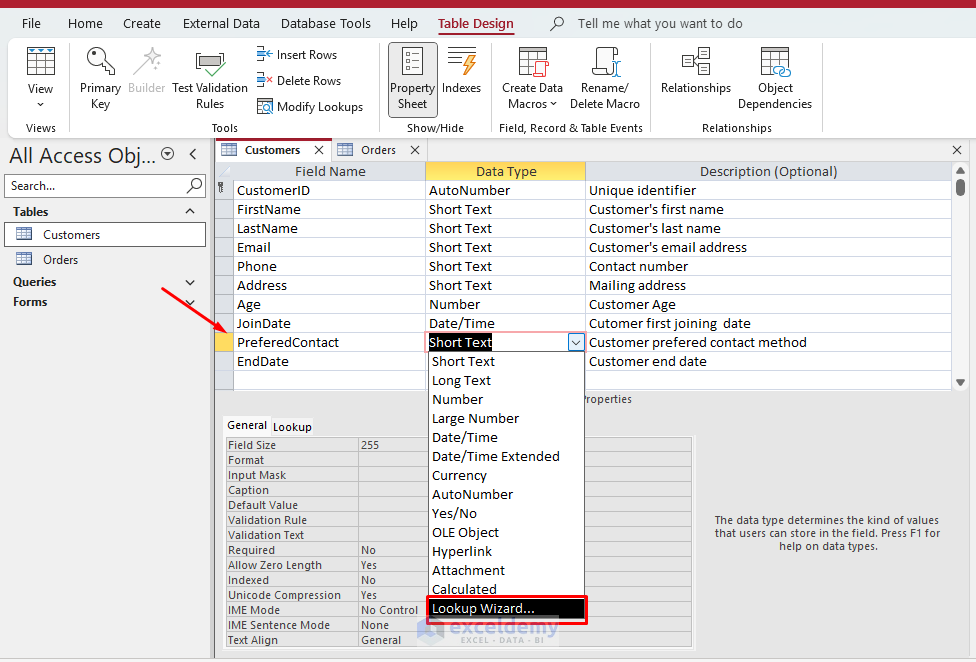

• Select a field, set Data Type to Lookup Wizard.

• In the Lookup Wizard prompt;
• Select I will type in the values that I want.
• Click Next.

• Enter the list of contacts method in the column.
  • Email
  • Phone
• Click Next.

• Select Limit To List.
• Click Finish.

Output:

Creating Advanced Validation with Forms

Forms offer more dynamic validation options and a better user experience.

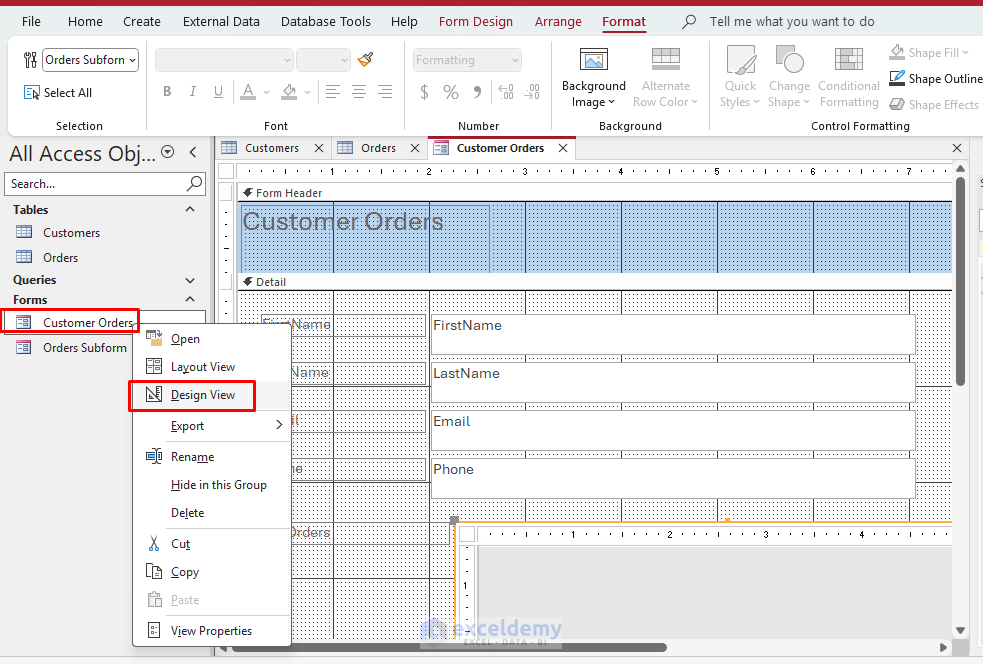

Step 1: Open Data Entry Form

• Open your form in design view.
• Right-click on the form and select Design View.

Step 2: Set Control Validation Properties

• Select a control (text box, combo box, etc.).
• Right-click and select Field Properties.
• Set validation properties like field validation.

Step 3: Use VBA for Complex Validation

For more complex validation scenarios, use the form’s events and VBA:

• Open the Property Sheet and click the Event tab.
• Click the (…) dot button next to events like Before Update or On Change.

• Write VBA code to implement your validation logic.

VBA Code:

Private Sub EmailField_BeforeUpdate(Cancel As Integer)
' Simple email validation
If InStr(Me.EmailField, "@") = 0 Or InStr(Me.EmailField, ".") = 0 Then
MsgBox "Please enter a valid email address.", vbExclamation
Cancel = True
End If
End Sub

Output:

Best Practices for Validation Rules

• Plan validation at the design phase: Determine the constraints needed before data entry begins.
• Use meaningful validation texts: Clear error messages help users correct their mistakes quickly.
• Validate only what’s necessary: Avoid overly restrictive rules that may block valid entries.
• Test all validation rules: Enter sample data to ensure rules work as expected.
• Use lookup fields when possible: Reduce human error by offering predefined choices.
• Avoid complex expressions in large datasets: Excessively complex validation can slow performance.

Conclusion

By implementing data validation rules, you can ensure data integrity in Microsoft Access. It is an essential component of maintaining a reliable and error-free database. You can effectively control what users can enter into your database by using field-level and table-level validation rules, input masks, and lookup fields. Not only does this ensure compliance with business rules, but it also improves the accuracy and trustworthiness of your data.
