Creating a Table from Scratch in Access: Best Practices and Structure

Image by Editor


Microsoft Access is a powerful relational database tool ideal for managing and analyzing data efficiently. Database tables are the foundation of any Microsoft Access database. When designed properly, they enable efficient data storage, help maintain data integrity, and make future queries and reports much easier to develop. In this tutorial, we will create a table from scratch in Access using the best practices and structures.

Step 1: Understand and Plan Your Table Structure

Before jumping into the technical steps, it’s important to understand what makes a good table structure. A well-designed table:

• Identify the table’s purpose: Clearly define the data the table will store.
• List your fields (columns): Decide what fields your table should have (for example: CustomerID, FirstName, LastName, Email, Date, etc).
• Choose suitable data types: Assign the appropriate data type (text, number, date/time, currency, yes/no, attachment, hyperlink, etc.) to each field.
• Determine a primary key: Choose or create a field that uniquely identifies each record (e.g., CustomerID, ProductID).

Think of your database table as a spreadsheet with enhanced capabilities. Each row represents a unique record, and each column represents a specific record attribute.

Step 2: Create a New Table in Access

• Open MS Access >> select Blank database.
• Name your database clearly (e.g., “CustomerData.accdb”).

• Go to the Create tab >> select Table Design.
• This opens the Table Design view where you’ll define your fields.

Step 3: Defining Fields and Data Types

You just define each field’s name, data type, and description clearly:

• Field Name: Use concise, descriptive names (e.g., CustomerID, FirstName, LastName).
• Data Type: Select the appropriate type (Text, Number, Date/Time, Currency, etc.).
• Description: Provide a short explanation for each field’s purpose.

For each field in your table:

• Enter the field name in the first column >> insert CustomerID.
• In the DataType column >> select Auto Number.
• In the Description column >> insert description Unique identifier for each customer.
• Set Field Properties in the bottom panel.

Common Data Types in Access:

• Short Text: For names, addresses, and other text (up to 255 characters).
• Long Text: For notes and longer text content.
• Number: For numerical values (various sizes available).
• Date/Time: For dates and times.
• Currency: For monetary values.
• Yes/No: For boolean values (true/false)
• AutoNumber: For automatically generated sequential numbers.

Example Customer Database Table:

Step 4: Set the Primary Key

• Identify a field uniquely representing each record (typically an AutoNumber ID).
• Click on the CustomerID field row that will serve as the primary key.
• Go to the Table Design tab >> select Primary Key from the Tools group.
• Or Right-click on the chosen field >> select Primary Key.

• A key icon will appear next to the field, indicating it’s the primary key.

Every table should have a primary key that uniquely identifies each record. An AutoNumber field is often ideal for this purpose.

Step 5: Set Field Properties

You can specify field size, validation rules, default values, and formats. Select each field and configure its properties in the Field Properties panel at the bottom of the design view.

Important Field Properties:

• Field Size: Limit the length appropriately to optimize database size. For Short Text fields, set an appropriate maximum length.
• Validation Rule: Create a rule that data must follow like enforcing correct data entry (e.g., validate email formats).
• Validation Text: The error message is shown when validation fails.
• Format: Control how data appears (e.g., phone number format).
• Input Mask: Create a template for data entry (e.g., (###) ###-####).
• Required: Specify whether the field must contain a value.
• Default Value: Value automatically entered in new records.

Example Field Properties

For an Email field:

• • Field Size: 100
  • Required: Yes
  • Validation Rule:
    (Like "*?@?*.?*") AND (Not Like "*[ ,;]*")

• It ensures the email field must contain a valid-looking email address, including an @ symbol and at least one dot (.) in the domain part, without spaces, commas, or semicolons.
• Validation Text: “Please enter a valid email address”.

Step 6: Add Indexes

Indexes improve search and sort performance. Add indexes to fields you’ll frequently use in queries, reports, or sorts.

• With a field selected, find the Indexed property in the Field Properties panel.
• Set to Yes (Duplicates OK) for fields you’ll frequently search or sort by.
• Set to Yes (No Duplicates) for fields that must be unique.

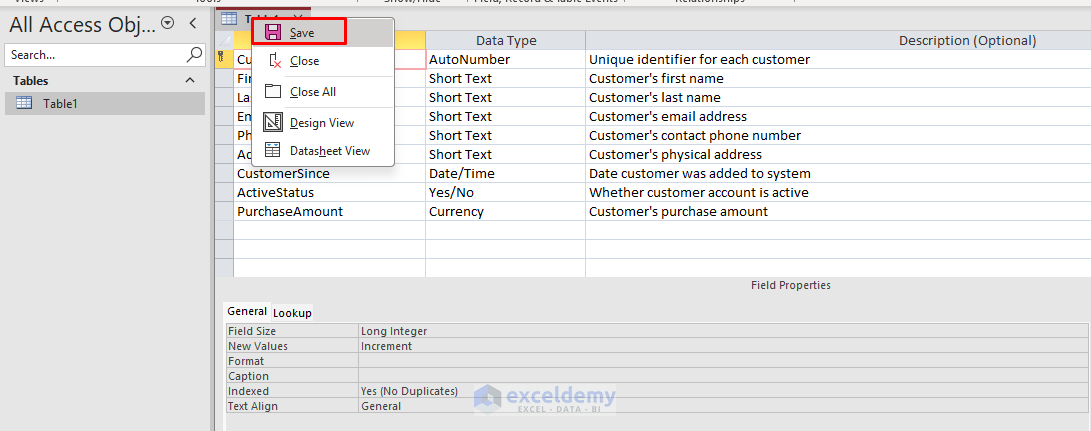

Step 7: Save Your Table

• Click the Save button or press Ctrl+S.

• Enter a meaningful table name following naming conventions. For example:
  • tblCustomers
  • tblProducts
  • tblSales
• Click OK.

Output:

Tip: Prefix tables with tbl to distinguish them from other Access objects like queries (qry), forms (frm), and reports (rpt).

Step 8: Enter Data and Test Your Table

After saving the table you can switch to Datasheet View to enter or import data easily.

• Go to the Table Design tab >> from View >> select Datasheet View.

• Insert the customer data.
• If data is inserted incorrectly, it will flag errors.

Creating Relationships (Optional)

After creating multiple tables, you can establish relationships.

• Go to the Database Tools tab >> select Relationships.
• Add the relevant tables to the Relationships view.
• Drag the primary key field from one table to the foreign key field in another.
• In the dialog that appears >> check Enforce Referential Integrity.
• Consider checking Cascade Update Related Fields and Cascade Delete Related Records if appropriate
• Click Create.

Best Practices for Table Structure in MS Access:

• Normalization: Avoid duplicate data by breaking information into related tables.
  • Avoid redundant data across multiple tables.
  • Break down complex tables into related simple tables.
  • Use lookup tables for repeatedly used values (e.g., states, categories).
• Consistent Naming Conventions: Use prefixes (e.g., “tbl” for tables, “qry” for queries).
  • Avoid abbreviations and special characters.
  • Use PascalCase for table names.
  • Use camelCase for field names.
• Data Integrity: Use validation rules, input masks, and default values to maintain accuracy.
  • Use Short Text for names, codes, and IDs that won’t be used in calculations.
  • Use appropriate number types (Integer for whole numbers, Double for decimals).
  • Use Required property for mandatory fields.
  • Create validation rules for fields with specific format requirements.
  • Add meaningful validation error messages.
  • Use Currency type for monetary values (not Number).
• Set field sizes appropriately: Use field sizes based on the data types, and avoid unnecessary inputs.
  • Don’t make text fields larger than necessary.
  • For state/province codes, use 2-5 characters.
  • For phone numbers, use 15-20 characters to accommodate international formats.
• Use indexes strategically: Use Indexes to increase performance and filter the data further.
  • Index fields are used frequently in searches and sorts.
  • Don’t over-index as it can slow down data entry.
• Consider future needs
  • Design with scalability in mind.
  • Leave room for additional fields that might be needed later

Conclusion

By following these steps and best practices, you can create a table from scratch in Access. By carefully planning fields, data types, and validation rules, you can ensure data integrity, accuracy, and ease of use.  Properly implemented primary keys and relationships allow the database to handle complex queries and reports smoothly.  A well structured table serves as the foundation of your Access database, paving the way for robust queries, clear reports, and intuitive user forms. You can use this database table for future use.
