Solving Sequencing Problems Using Excel Solver Solution

Microsoft Excel is a powerful software. We can perform numerous operations on our datasets using excel tools and features. There are many default Excel Functions that we can use to create formulas. Many educational institutions and business companies use excel files to store valuable data. Sometimes, we have to deal with sequencing problems in real life. Doing manually to figure out the desired sequence is a very tough job and that’s tiresome too. The Solver tool in excel can alleviate the hassle. This article will show you 2 ideal examples of Solving Sequencing Problems Using Excel Solver Solution.


Download Practice Workbook

Download the following workbook to practice by yourself.


2 Ideal Examples of Solving Sequencing Problems Using Excel Solver Solution

In every organization or institution, they maintain a work sequence taking multiple things into consideration. Aside from that, individuals also sequence their tasks to have maximum benefit and fewer costs. So, it’s essential to determine an efficient order of the jobs. Excel has an add-in tool named Solver, which specializes in performing this kind of task and outputs the best solution possible. Therefore, go through the following 2 examples to carry out the operation.


1. Solving Traveling Salesman Sequencing Problem Using Excel Solver Solution

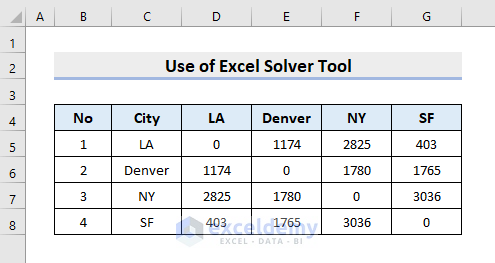

To illustrate, we’ll use a sample dataset as an example. For instance, the below dataset contains 4 Cities and the Distance between them. Here, we’ll find out a sequence of the cities for a traveling salesman so that the total distance covered will be minimum. So, follow the steps below to perform the task.

solving sequencing problems using excel solver solution

STEPS:

  • First, we’ll set up a random order in the I column as shown below.
  • Then, select cell J6 instead of J5.
  • Type the formula:
=INDEX($D$5:$G$8,I6,I5)
  • Subsequently, press Enter.
  • Here, the INDEX function extracts the distance between the cities specified in I6 and I5.
  • Use AutoFill to get the other outputs.

Solving Traveling Salesman Sequencing Problem Using Excel Solver Solution

  • Now, select cell J5.
  • Next, input the formula:
=INDEX($D$5:$G$8,I5,I8)
  • Click Enter.
  • Thus, it’ll give out the distance between the first and the last city.

  • After that, use the AutoSum feature in cell J9 to calculate the total distance.

calculating total distance of sequencing problem

  • Again, to add the Solver tool, go to File > Options.
  • As a result, the Excel Options box will pop out.
  • There, in the Add-ins tab, select Excel Add-ins > Go.

  • Check the box for Solver Add-in.
  • Press OK.

adding excel solver tool

  • Now, click Data > Solver.

  • In the Solver Parameters dialog box, select Set Objective > E15.
  • Then, choose Min.
  • Select B11:B14 from the data for the By Changing Variable Cells
  • Next, we’ll add the constraints by clicking the Add button.
  • Our constraints are:

B11:B14 <= 4

B11:B14 = AllDifferent

B11:B14 = integer

B11:B14 >= 1

  • Consequently, select Evolutionary as the solving method.
  • Lastly, press Solve.

preparing excel solver to solve sequencing problems

  • Hence, it’ll return a new sequence where the total distance is the lowest value possible.
  • In this way, we can solve sequencing problems using the Solver tool.

excel solver solution of sequencing problem


2. Apply Excel Solver Solution to Solve Job Schedule Sequencing  Problem

We’ll demonstrate another example of using the Solver tool to solve sequencing problems. The following dataset has 4 types of Jobs, Days Needed, and Due Dates. Here, we’ll make an order of the jobs where the Tardiness will be as little as possible. Therefore, learn the following steps.

Apply Excel Solver Solution to Solve Job Schedule Sequencing Problem

STEPS:

  • Firstly, we’ll create a random sequence.
  • Then, as a starting day, 0 is placed in cell C11.
  • Now, select cell C12.
  • Type the formula:
=INDEX($D$5:$D$8,MATCH(C10,$B$5:$B$8,0))+C11
  • Next, press Enter to get the result.
  • Here, the MATCH function looks for the C10 cell value in the range B5:B8 and returns the position.
  • The INDEX function extracts the days needed to complete the specified task.
  • Finally, the starting date is added to the function output to get the finishing date.

  • After that, select cell D11 and input the formula:
=C12
  • Press Enter to get the starting date of the next task.

  • Subsequently, use AutoFill to complete the starting and ending series.
  • See the picture below to have a better understanding.

  • Afterward, choose cell C13 to insert the formula:
=INDEX($E$5:$E$8,MATCH(C10,$B$5:$B$8,0))
  • Similarly, the MATCH function extracts the position of a specific task.
  • And the INDEX function returns the due date for that task.
  • Apply AutoFill.

  • At last, we’ll compute the Tardiness.
  • In this regard, select cell C14.
  • Input the formula:
=MAX(0,C12-C13)
  • Click Enter.
  • The MAX function compares the values and returns the largest.
  • Consequently, use AutoFill.

  • Now, to calculate the total tardiness, click cell C16.
  • Type the formula:
=SUM(C14:F14)
  • Press Enter.

  • To solve the sequencing problem, go to Data > Solver.
  • In the pop-out dialog box, set C16 as the objective.
  • Choose Min.
  • We’ll change C10:F10 as the variables.
  • The constraints in this problem are:

C10:F10 = AllDifferent

C10:F10 = integer

  • Accordingly, choose Evolutionary as the solving method.
  • Lastly, click Solve.

preparing excel solver for solving sequencing problems

  • Thus, you’ll get the best sequence with as little as possible tardiness.
  • Look at the final result below.

excel solver solution of sequencing problems


Conclusion

Henceforth, you will be Solving Sequencing Problems Using Excel Solver Solution after learning the above-described examples. Keep using them and let us know if you have more ways to do the task. Follow the ExcelDemy website for more articles like this. Don’t forget to drop comments, suggestions, or queries if you have any in the comment section below.
