How to Copy a Chart from Excel to Word (3 Easy Ways)

Get FREE Advanced Excel Exercises with Solutions!

Have you ever found yourself spending too much time manually recreating charts in Microsoft Word that you’ve already created in Excel? Fear not, because we have the ultimate time-saving solution for you! In this article, we will show you how to copy a chart from Excel to Word using several methods.
With these techniques, you can effortlessly transfer your charts from Excel to Word in just a matter of seconds. So, let’s dive into the step-by-step guide on how to copy a chart from Excel to Word and streamline your work process!

how to copy a chart from excel to word

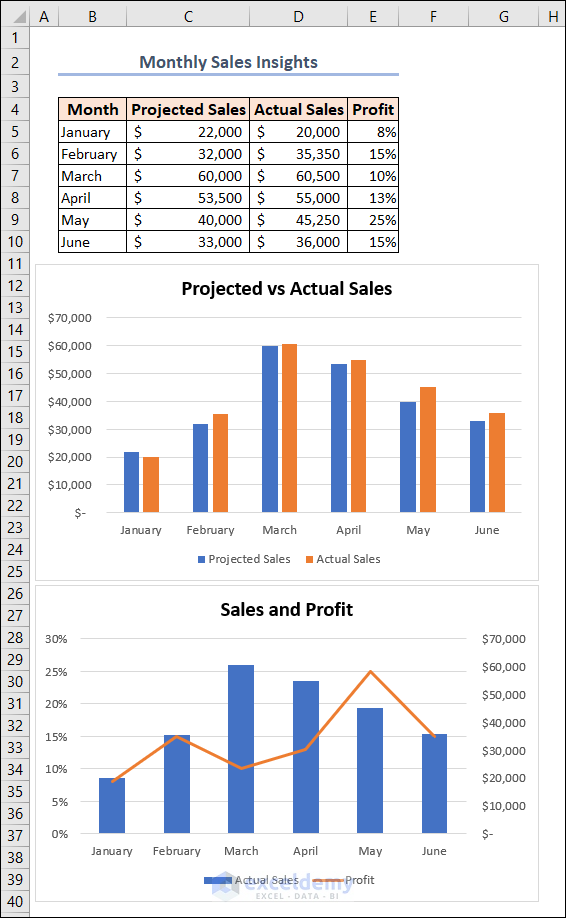

For ease of understanding, we are working with Monthly Sales Insights. This dataset includes the Month, Projected Sales, Actual Sales, and Profit under columns B, C, D, and E respectively. To gain a clearer understanding of the data, we have included several charts generated from this dataset. One chart provides a comprehensive view of Projected Sales vs Actual Sales, while another offers a detailed perspective on Sales and Profit.

dataset regarding monthly sales insights

Note: This is a basic dataset to keep things simple. In a practical scenario, you may encounter a much larger and more complex dataset.
Now, we’ll utilize this dataset and charts to show how to copy a chart from Excel to Word using multiple methods. So, let’s explore them one by one.
Not to mention, here, we have used the Microsoft Excel 365 version; you may use any other version according to your convenience. Please leave a comment if any part of this article does not work in your version.

1. Copying a Chart from Excel and Link It to Word

Linking a chart from Excel to Word allows for automatic updates to the chart in Word whenever changes are made to the original chart in Excel.

This feature is particularly useful in situations where it is important to present the most current data, as it eliminates the need to manually update the chart in Word every time changes are made to the Excel file.

1.1 Use Copy-Paste Keyboard Shortcuts for Faster Execution

We have shown the simplest and most effective method at the very beginning. So that you don’t need to go through the following methods when your purpose is fulfilled. Here, we have used the Copy-Paste feature of office software.

  • Click anywhere on the chart that you want to import to Word. Simply, it selects the chart.
  • Then, press CTRL + C together to copy the chart in Excel.

selecting and copying chart in Excel

  • After that, open the Word app and take a blank document. By default, you will see the caret (the blinking vertical line) at the top left side of the page.
  • Press CTRL + V to paste the chart here.

pasting chart in word from Excel

Absolutely! The chart has been successfully pasted into the Word document.

chart pasted in the doc file from Excel

  • Now, get back to the Excel worksheet and change any value in the dataset which is connected to the chart. Here, we changed the value of Projected Sales for January month to $30,000.

As a result, the column for this data was also transformed. Actually increased a bit in height according to the value.

changing value in Excel and chart is getting changed in Excel also

  • In a moment, return to the doc file and see the change in the chart there.

Yes, it’s happening. This has been changed automatically.

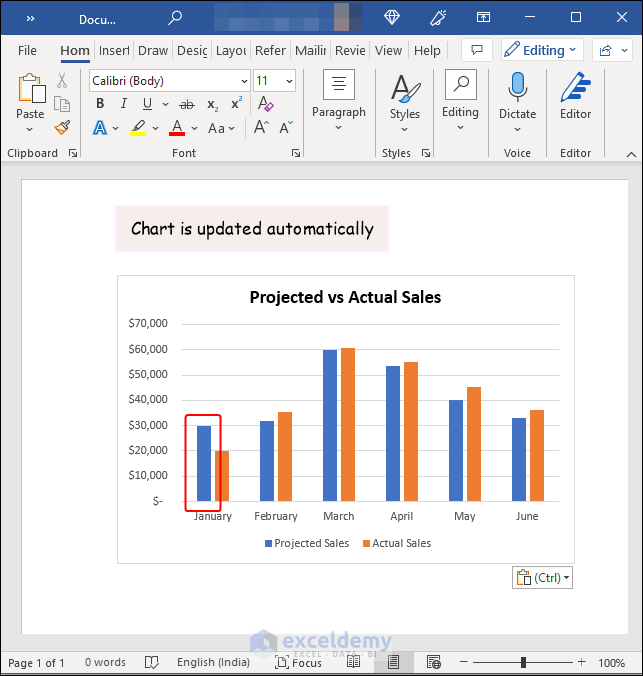

chart is updated automatically in Word

Read More: How to Export Data from Excel to Word


1.2 Utilize Different Paste Options

You have the option to select various Paste options when copying a chart from Excel to Word. These options allow you to determine the manner in which the chart is pasted into your Word document.

  • Follow the steps described in Method 1.1 to copy the chart in Excel.
  • In the Word app, click on the Paste drop-down icon.
  • From the Paste Options, you can choose either of these two highlighted options in the following image. One is Use Destination Theme & Link Data, and the other one is Keep Source Formatting & Link Data.

using different paste options

Note: These two options link the chart data to the original Excel workbook, so if changes are made to the data in Excel, those changes will be reflected in the chart in the Word document. The main difference is that the first one pastes the chart with Word’s theme, while the second one preserves the original formatting from Excel.

We can see the chart now in Word.

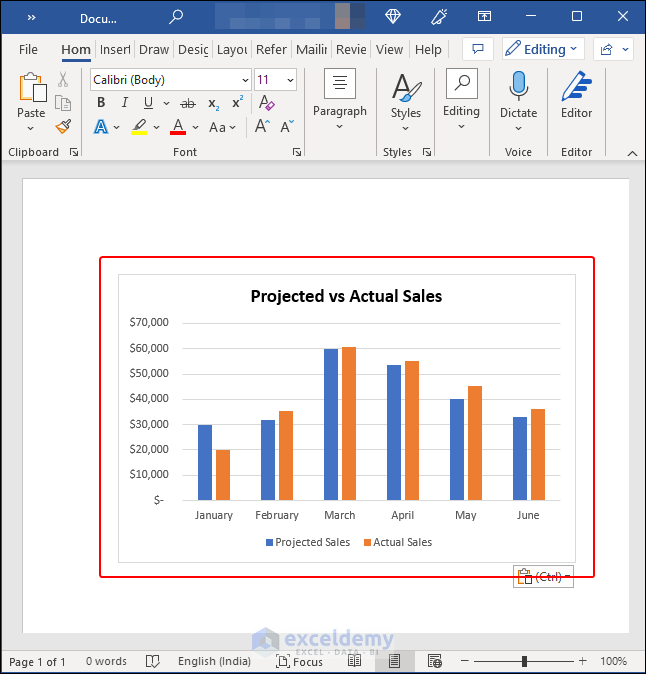

chart is pasted in word and linked to Excel


1.3 Pasting as Microsoft Office Graphic Object with Editable Data

By pasting a chart as a Microsoft Office Graphic Object with Editable Data, you can keep the chart’s formatting intact and modify its data directly in the Word document. This feature is particularly handy when you need to update the chart in real time because any changes made to the chart in Excel will automatically be updated in the Word document as well.

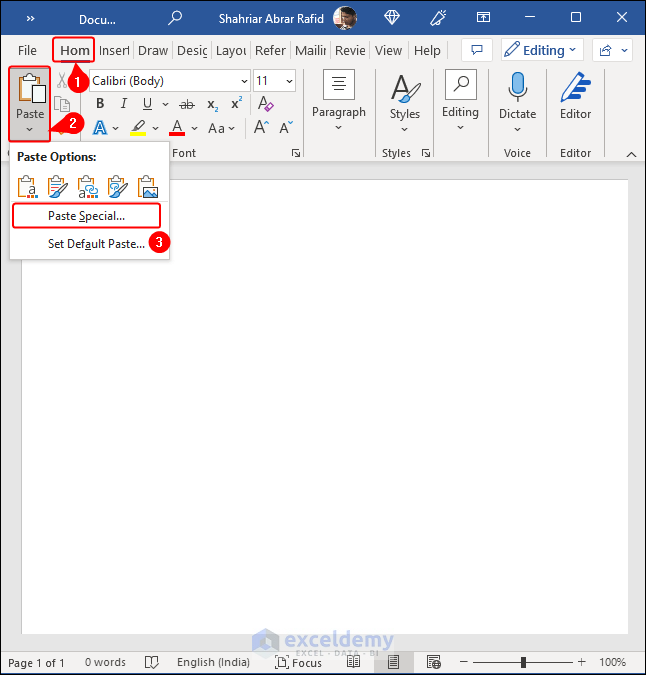

clicking on Paste Special command in Word

It’ll open the Paste Special dialog box.

  • Now, click on the radio button beside the Paste link option and select Microsoft Office Graphic Object as an option and tap OK.

using paste link option and Microsoft graphic object to copy chart from Excel to word

Without a doubt, Excel copied the chart to Word.

copied chart in word from excel


2. Copying a Chart from Excel and Embed It into Word

Embedding a chart copied from Excel into a Word document can enhance its visual appeal and make it easier to reference the data within the chart. It is not linked to the original Excel data and therefore is not auto-updateable.

  • Follow the steps provided in Method 1.1 to copy the chart from Excel.
  • Open the Word app and select Home >> Paste. Then, from the two paste options (Use Destination Theme & Embed Workbook and Keep Source Formatting & Embed Workbook), choose any one.

using different Paste options to paste copied chart in word in embedded form

Indeed, Excel copied the chart from Excel to Word.

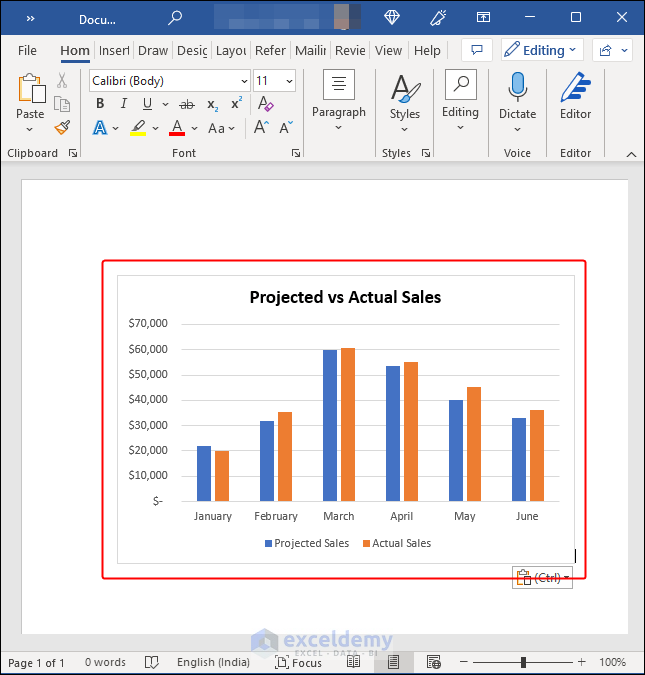

chart is copied in word

To test the variability, change a value in the Excel sheet. We changed the value of the Projected Sales for the month of January and there is a significant change in the chart in Excel.

changing value in Excel and chart is getting changed in Excel also

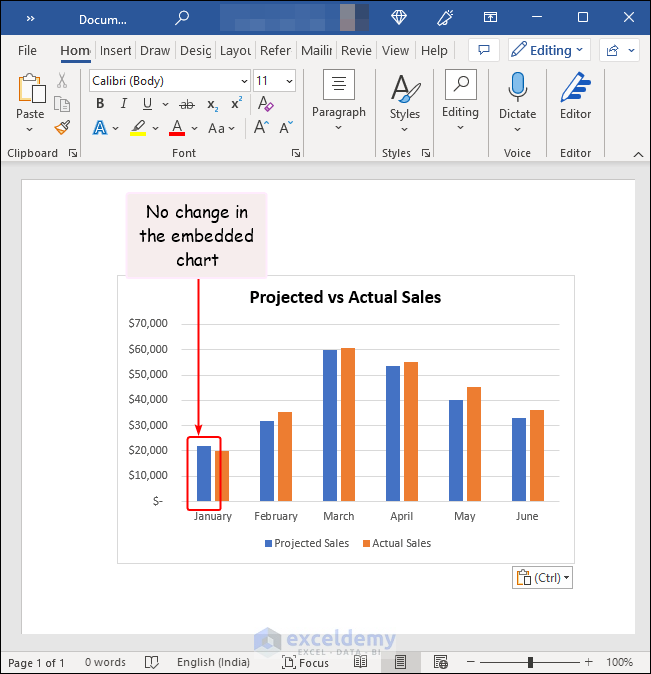

But if you navigate to the Word document, you can see no difference in the chart here. So, it didn’t get updated with the Excel sheet.

No change in the embedded chart in word

Read More: How to Copy from Excel to Word Without Losing Formatting


3. Copying a Chart as a Non-Editable Picture from Excel to Word

When you copy a chart from Excel to Word as a non-editable picture, it helps maintain the chart’s formatting and prevents any unintentional modifications within the Word document. This can be beneficial if you want to ensure the chart’s accuracy and visual appeal.

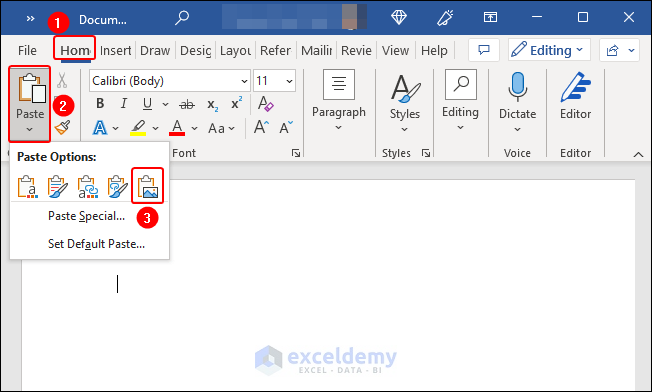

pasting as picture in word doc file

Instantly, you can see the chart available in your document.

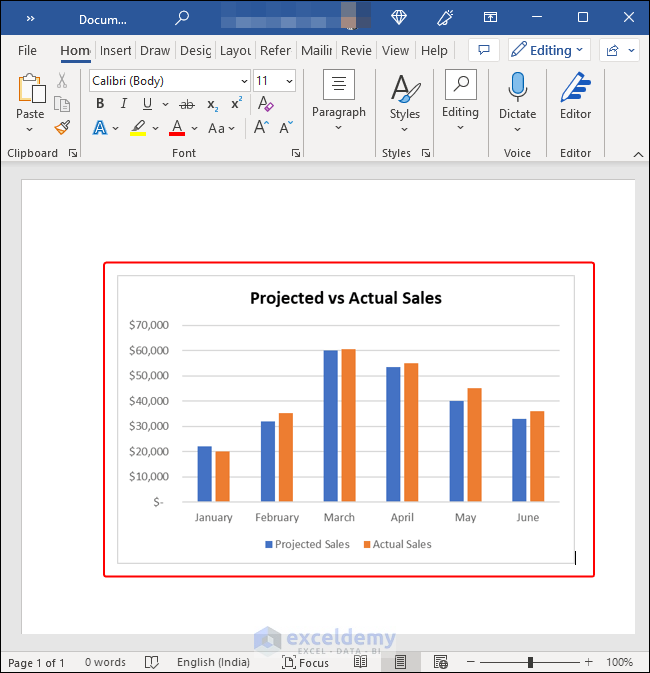

chart copied as picture in word

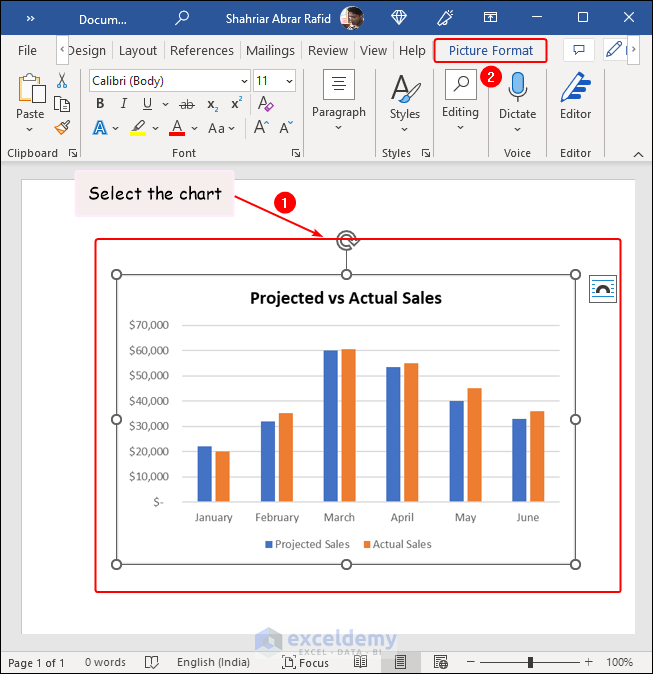

If you select or click on the chart in Word, you can find the Picture Format tab on the Ribbon. This means it’s in the picture format now.

selecting chart and showing picture format tab in ribbon in word

Read More: How to Transfer Data from Excel to Word Automatically


Why Copying Charts from Excel to Word Is Useful?

When you copy charts from Excel to Word, it becomes beneficial for the following reasons:

  • Presenting Data: If you created a chart in Excel to display data, you might want to include it in a report or presentation made in Word. Copying and pasting the chart from Excel into Word enables you to present data in a visually appealing manner.
  • Saving Time: Copying and pasting from Excel to Word can save time instead of recreating the chart in Word. It eliminates the need to manually input data or create a new chart from scratch.
  • Maintaining Data Accuracy: Copying the chart from Excel to Word ensures that the data remains linked to the original Excel file. As a result, any changes made to the Excel file are automatically reflected in the chart in Word. This guarantees that the data presented in your document is up-to-date and accurate.
  • Customizing Chart: Excel provides various customization options for charts, such as changing the chart type, applying to format, and adding labels and titles. Copying the chart from Excel to Word enables you to retain all customizations made in Excel and create professional-looking documents.

How to Update Chart Manually

Sometimes your chart may not be updated automatically with the Excel file, though it’s linked to the source Excel file. In this case, you have to follow this step.

  • Click on the chart to enable the tabs related to the chart.
  • Then, navigate to the Chart Design tab and click on Refresh Data on the Data group of commands.

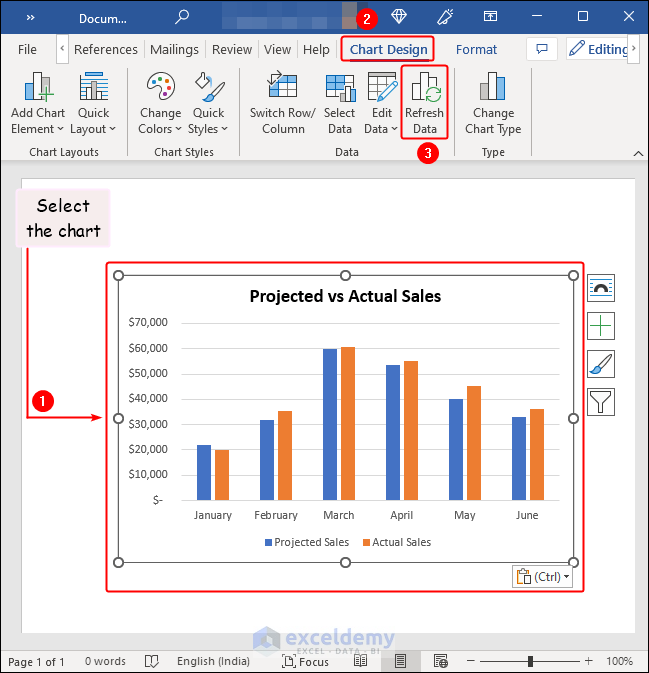

Refreshing chart in Word

Simply, this will ensure that your chart is up-to-date and visually appealing. And you can see the change in the chart instantly.


How to Save Chart as Picture Using VBA Code

You can automate the task of exporting your Excel charts as pictures using a simple VBA macro if you need to do this regularly.

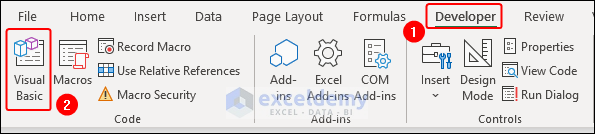

  • Move to the Developer tab, then click on the Visual Basic button in the Code group.

navigating to Developer tab

Note: By default, the Developer tab remains hidden. You have to enable the Developer tab on the Ribbon manually.

It launches the Microsoft Visual Basic for Applications window.

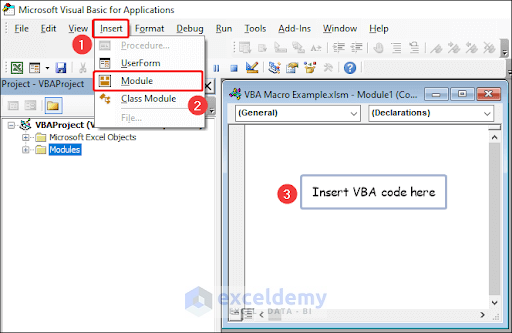

  • Now, click the Insert tab and choose Module from the list. We get a small Module window to insert our VBA code.

inserting new code module

  • Here’s the working code to do the task. Paste this code into the module.
Sub Save_Chart_As_Picture()
Dim chart_Title As String
chart_Title = ActiveChart.chartTitle.Text
ActiveChart.Export "D:/ExcelDemy/" & chart_Title & ".png"
End Sub

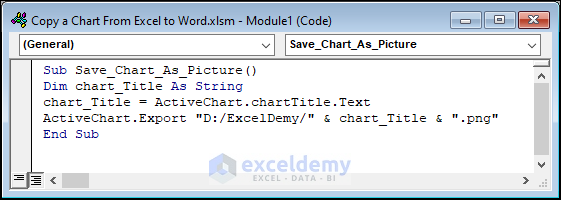

VBA code to save chart as picture in Excel

  • Now, get back to the worksheet. Select the chart and go to Developer >> Macros.

selecting chart and clicking on Macros option

It will bring up the Macro dialog box.

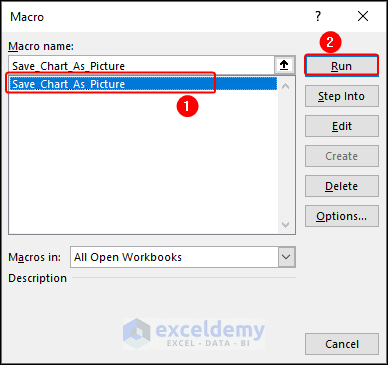

  • Select Save_Chart_As_Picture in the Macro name box and click on Run.

selecting macro to save chart as picture in Excel and run

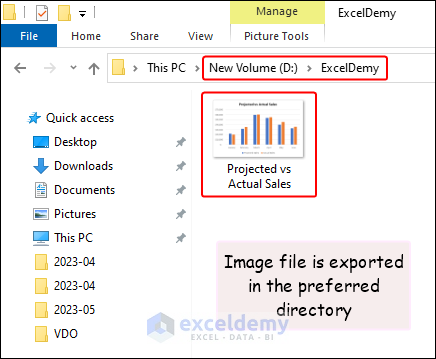

Magically, you can find the selected chart exported as a picture in your preferred directory.

image file is exported in preferred directory

Moreover, You can export all the charts in a worksheet too. For this purpose, remaining on the active sheet you have to run this code.

Sub Save_All_Chart_of_Worksheet()

Dim chtObj As ChartObject
Dim chtTitle As String

For Each chtObj In ActiveSheet.ChartObjects
chtObj.Activate
chtObj.Select
chtTitle = chtObj.Chart.chartTitle.Text
chtObj.Chart.Export "D:/ExcelDemy/" & chtTitle & ".png"
Next chtObj

MsgBox "Export complete"

End Sub

VBA code to save all charts in a selected sheet as pictures

Excel will do the remaining work. All charts in the active sheet will be saved in the desired location on your PC.


How to Save All Charts in Excel Workbook as Images

Excel offers a feature to save all charts in a workbook as images simultaneously, rather than saving each chart individually.

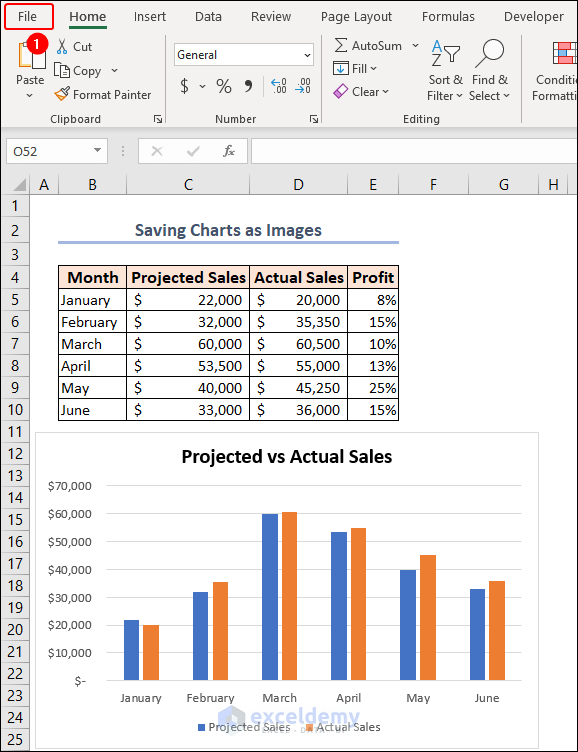

  • Go to the File tab.

going to File tab in Excel

  • Then, click on Save As >> Browse.

clicking on Browse option to save file in the preferred location and type in Excel

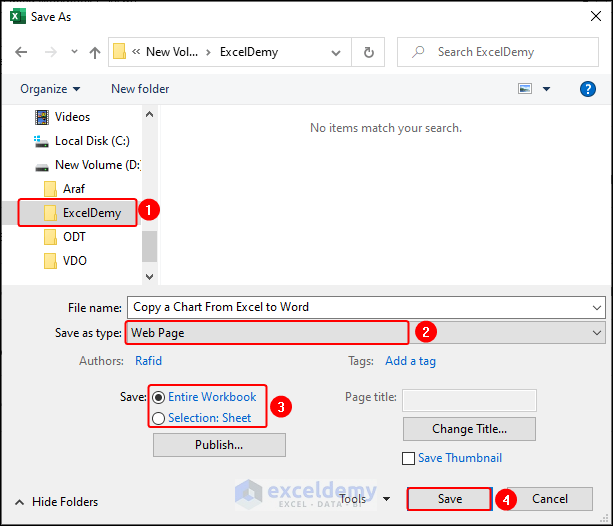

In the Save As dialog box, select ExcelDemy as the preferred location folder, choose Web Page as Save as type and click on Save.

Note: You can choose to save charts from the Entire Workbook or from the Selection: Sheet.

working on Save As dialog box to save charts as pictures in Excel

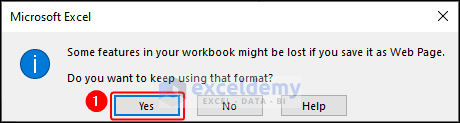

Excel will show a warning message, Just click on Yes here.

Showing warning message of losing features of workbook

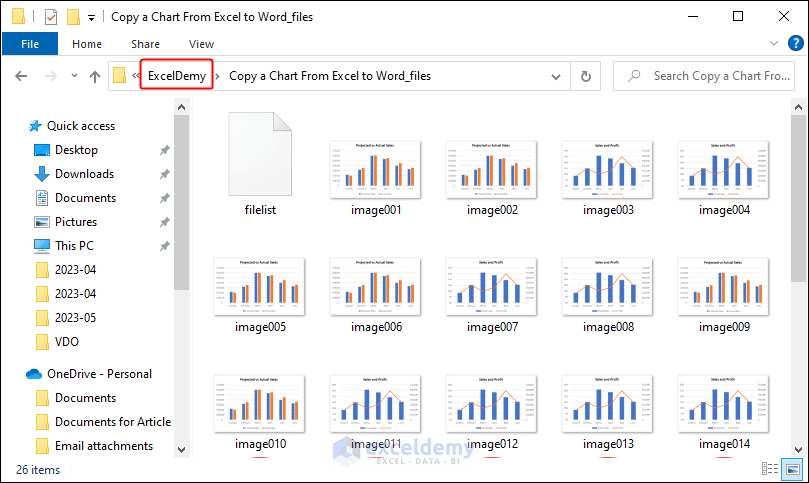

In the ExcelDemy folder, you can see all the charts saved as pictures and named serially.

all pictures of workbook saves as picture


How to Copy Excel Table into Word and Make It Fit

Our main task is to fit the table into the Word page after pasting an Excel table into Word. Because without fitting the table, it will be tough to use and look unpleasant.

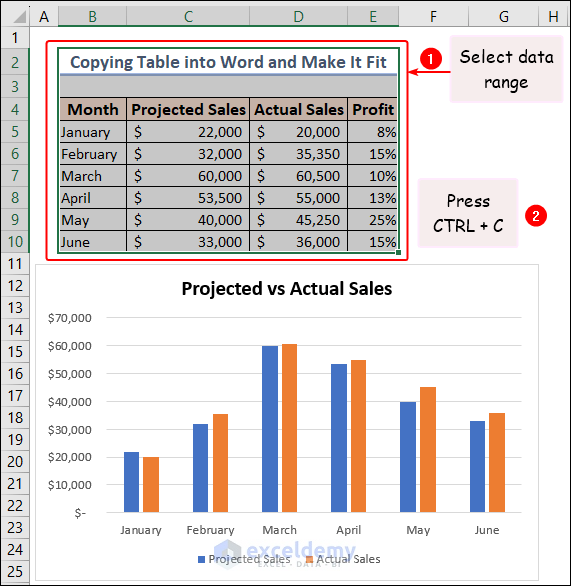

  • Firstly, select the data range in the B2:E10 range and press CTRL + C to copy the range.

selecting and copying data range

  • Go to the Word app and press CTRL + V to paste the data at the position of caret.

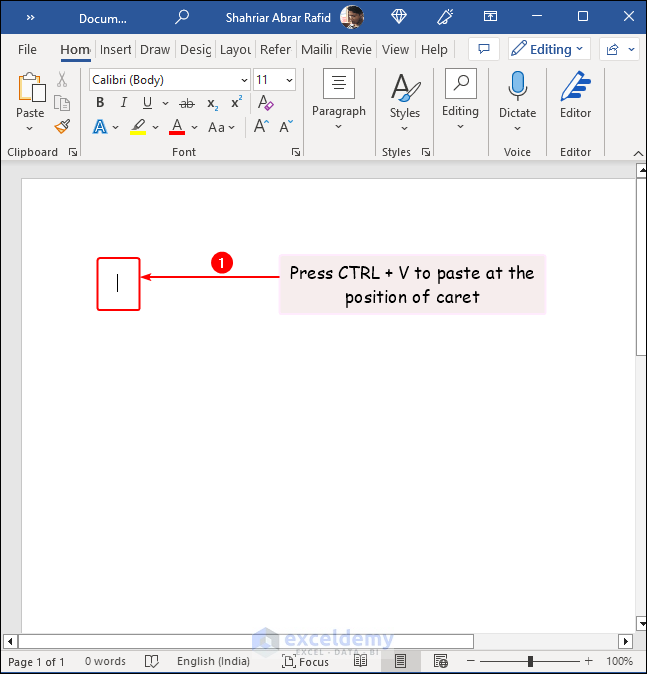

pasting data at the position of caret

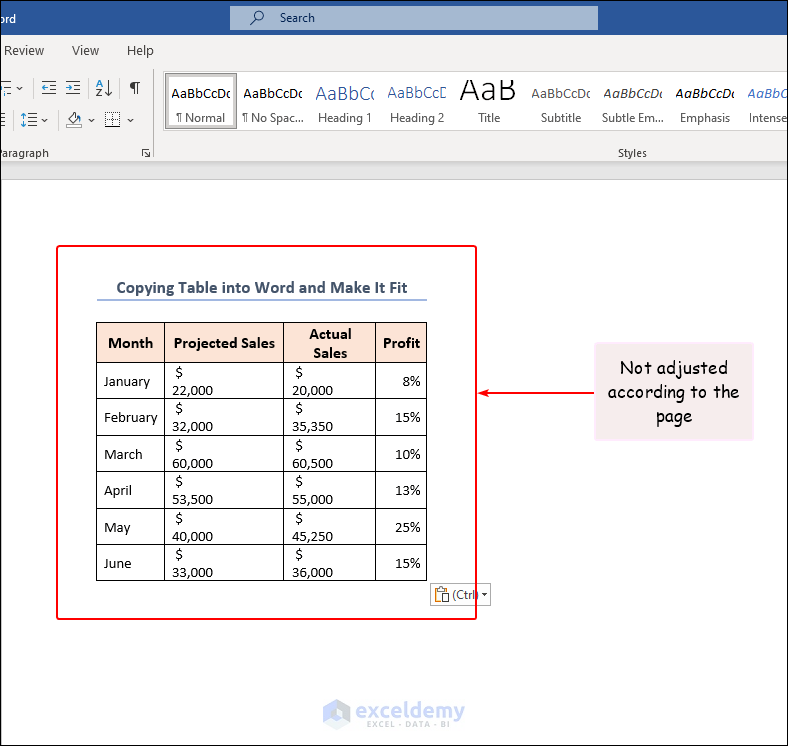

You can find the Excel data in the Word document. But it is not adjusted with the document’s page. So, the appearance is quite unappetizing.

data table pasted in word but not adjusted with page

To adjust it with the doc file,

  • Click on Layout >> Cell Size >> AutoFit >> AutoFit Window.

choosing AutoFit Window in word

See how the data adjusts to fit the page of the document.

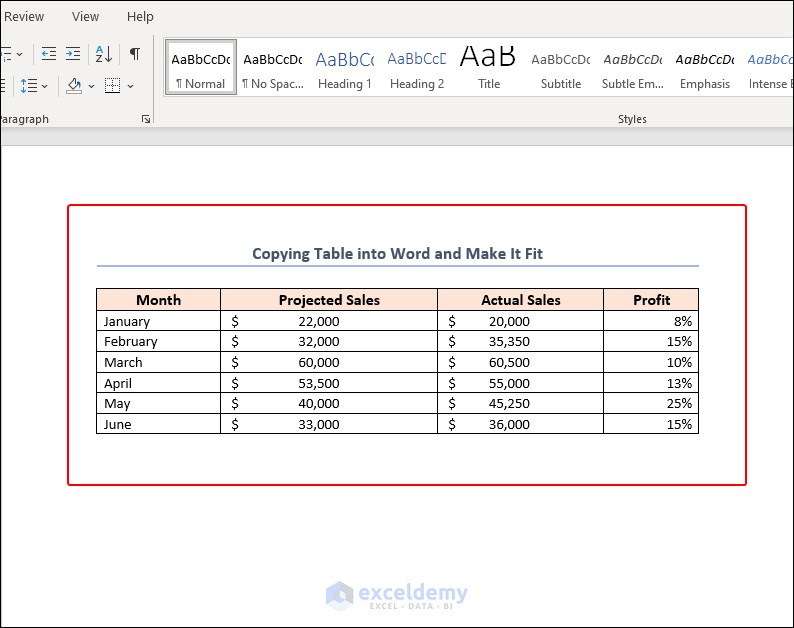

making copied excel table fit into word


Things to Remember

  • Copy the entire chart, including the title and axis labels, to ensure that the chart is fully functional and looks complete in Word.
  • If you paste the chart as an embedded object, make sure to update the links between Excel and Word to keep the chart up-to-date.
  • Avoid resizing the chart in Word, as it can distort the chart’s proportions and make it harder to read.
  • If you need to make changes to the data, double-click on the chart to open it in Excel.

Frequently Asked Questions

1. Can I maintain data accuracy when copying a chart from Excel to Word?

Yes, when you copy a chart from Excel to Word, the data remains linked to the original Excel file. This means that if we make any changes to the data in the Excel file, it will automatically reflect in the chart in Word for ensuring data accuracy.

2. What are the benefits of copying a chart from Excel to Word?

The benefits of copying a chart from Excel to Word include presenting data in a visually appealing manner, saving time, maintaining data accuracy, and customizing charts to create professional-looking documents.

3. Is it possible to update a chart in Word that was copied from Excel?

Yes, charts copied from Excel to Word are linked to the original Excel file, so any changes made to the data in the Excel file will automatically be reflected in the chart in Word.

4. Are there any limitations to copying a chart from Excel to Word?

One limitation of copying a chart from Excel to Word is that if we delete the original Excel file or move it, the chart in Word may not update. Additionally, Word may not support some advanced chart features.


Download Practice Workbook

Download this practice workbook to exercise while you are reading this article.


Conclusion

In conclusion, copying a chart from Excel to Word is an effective way to present data, save time, maintain data accuracy, and customize charts. It’s a simple process that allows you to retain all the customizations made in Excel, ensuring a professional-looking document.
By following the methods outlined, you can easily learn how to copy a chart from Excel to Word to create visually appealing reports and presentations. This technique is especially useful for those who work with data and want to create polished documents that accurately represent their findings.
You are most welcome to give feedback about this reference. Feel free to comment if you have any questions or queries. Happy Excelling.
