SUMPRODUCT Function with Multiple Columns in Excel (4 Ways)

Get FREE Advanced Excel Exercises with Solutions!

SUMPRODUCT is one of the most powerful array functions in Microsoft Excel that can pull out data from an array based on the criteria along multiple columns & rows. In this article, you’ll learn how to use this SUMPRODUCT function with multiple columns under a number of criteria in an efficient manner.

Download Practice Workbook

You can download our Excel workbook that we’ve used to prepare this article.


Introduction to SUMPRODUCT Function

Before getting down to the uses of the SUMPRODUCT function, let’s have a look at first how this function works.

  • Syntax:
=SUMPRODUCT(array1,[array2],[array3],…)
  • Output:
Returns the sum of the products of corresponding ranges or arrays
  • Example:

In our example below, there are two columns comprising of unit & cost per unit of some materials. With the SUMPRODUCT function, we can easily find out the total cost for all units. To do this, we have to type in cell C7:

=SUMPRODUCT(B3:B6*C3:C6)

After pressing ENTER, you’ll get the total cost at once for all products.

Inside the SUMPRODUCT function, we’re technically multiplying all units from Column B with the related costs per unit from Column C. SUMPROUCT function will then return by summing up all the products.


4 Suitable Approaches to Use SUMPRODUCT with Multiple Columns

We will now try to demonstrate 4 different approaches to apply the SUMPRODUCT function in Excel under different criteria. Let’s start!

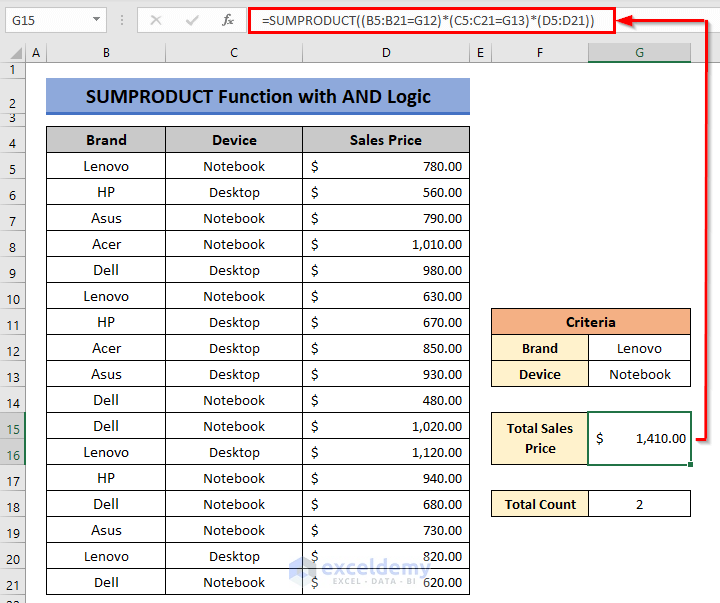

1. Using SUMPRODUCT with Multiple Columns Under AND Logic Criteria

Now we’ll deal with our actual dataset where 3 columns are present with computer brands, device categories & sales price for each. In our first application with the SUMPRODUCT function, we’ll find out the total sales price of the Lenovo notebook from the table data.

📌 Steps:

  • First of all, select cell G15, and type the following formula:

=SUMPRODUCT((B5:B21=G12)*(C5:C21=G13)*(D5:D21))

  • Now, press ENTER, and you’ll get the result at once.

SUMPRODUCT Multiple Columns with AND Logic

💡 How the Formula Works

B5:B21=G12 matches cell G12 (i.e. Lenovo) with the range B5:B21  & C5:C27=G13 also matches cell G13 with the range C5:C27 and returns TRUE or FALSE. Matching both ranges, the total price of Notebook device of Lenovo brand is calculated inside the function.

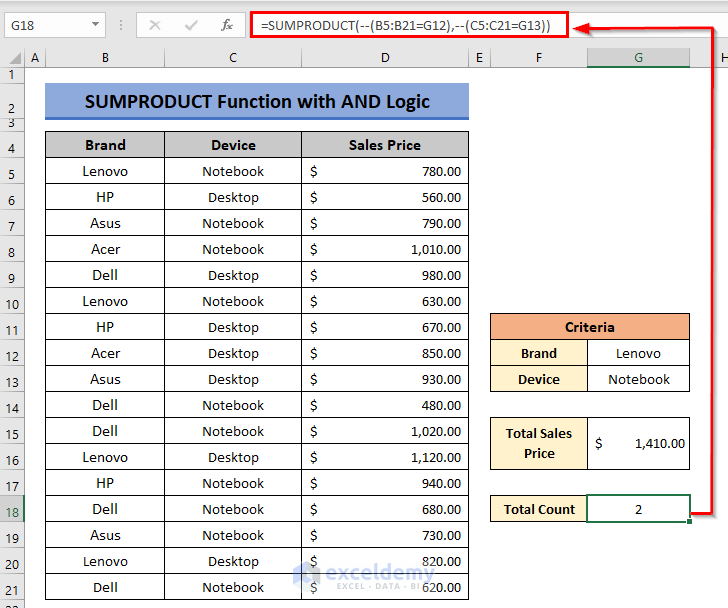

With the SUMPRODUCT function, we can also extract the total counts of Lenovo notebooks or any other category from the table.

📌 Steps:

  • First, select cell G18, and type:

=SUMPRODUCT(--(B5:B27=G12),--(C5:C27=G13))

  • Then, press ENTER, and you’ll see the result right away.

💡 Formula Explanation

In this case, we’re using logic arguments inside the SUMPRODUCT function. We’re asking the function to determine if the selected criteria match the cell values in Columns B & C. Uses of Double-Unary(–) before the arguments will convert the logical text values (TRUE or FALSE) into 1 or 0. And then SUMPRODUCT will sum up those number values to display the final result.

Read More: Excel SUMPRODUCT with Multiple Criteria in Same Column


2. Using SUMPRODUCT with Multiple Columns Under OR Logic Criteria

Now we’ll assign OR logic in our criteria. We’ll determine the total sales price of the Lenovo notebook and desktop.

📌 Steps:

  • First, type the formula below in cell G15.

=SUMPRODUCT((B5:B21=G11)*((C5:C21=G12)+(C5:C21=G13))*(D5:D21))

  • Now, press ENTER, and the total sales price will be displayed in that cell.

SUMPRODUCT Multiple Columns with OR Logic

💡 How the Formula Works

B5:B21=G11 matches cell G11 (i.e. Lenovo) with the range B5:B21  & C5:C27=G12  matches cell G12 with the range C5:C27 & D5:D27=G13  matches cell G13 with the range D5:D27 and returns TRUE or FALSE. Matching both ranges, the total price of Notebook and Desktop of the Lenovo brand is calculated inside the function.

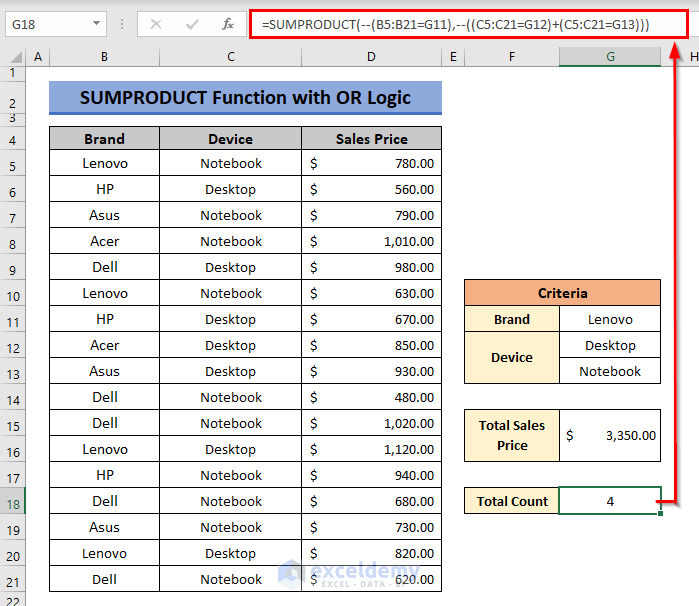

If we want to count the presence of Lenovo devices in the table, then the device criteria will have to be added by inserting a Plus(+) between those two criteria.

Just apply the formula below in cell G18.

=SUMPRODUCT(--(B5:B27=G11),--((C5:C27=G12)+(C5:C27=G13)))

Read More: [Solved] SUMPRODUCT with Multiple Criteria Not Working in Excel


Similar Readings


3. Using SUMPRODUCT Along Multiple Columns and Rows

SUMPRODUCT is one of the most useful functions that can extract data or do complex calculations by scrutinizing all mentioned criteria along rows & columns from an array. In our following & new dataset, the sales of computer devices of different brands are presently based on the months. We’ll find out the number of sales for HP notebooks in January.

The SUMPRODUCT function can extract data or do complex calculations by scrutinizing all mentioned criteria along rows & columns from an array. In our following & new dataset, the sales of computer devices of different brands are presently based on the months. We’ll find out the number of sales for HP notebooks in January.

All you have to do is apply the following formula in cell L11 and you’ll get the total counts instantly under our criteria.

=SUMPRODUCT(D5:I14,(C5:C14=C10)*(D4:I4=L9)*(B5:B14=L7))

SUMPRODUCT Multiple Columns and Rows

💡 Formula Explanation

If you look carefully inside the function, we’ve selected the entire array of sales data first. Then we added the criteria along 2 columns and a row. SUMPRODUCT function then looked for our criteria in the selected array and returned the final result by summing up all extracted data.

Read More: How to Use SUMPRODUCT with Multiple Criteria in Excel

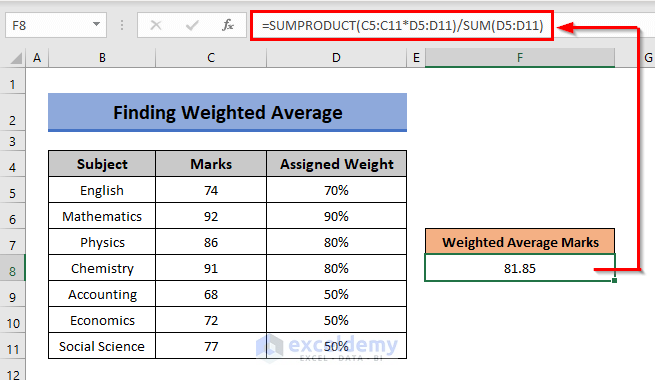

4. Inserting SUM Function Inside SUMPRODUCT to Calculate Weighted Average

By combining the SUMPRODUCT, and SUM functions together, we can determine the weighted values for a range of data. The following dataset represents a student’s final exam marks along with the assigned weights of a number of subjects. We’ll calculate the weighted average marks of the student.

The formula to find the weighted average in cell F8 will be:

=SUMPRODUCT(C5:C11*D5:D11)/SUM(D5:D11)

So, here the SUMPRODUCT function sums up all the products of marks & assigned weights. Then the calculated result will be divided by the summation of all assigned weight percentages.

Read More: SUMPRODUCT for Counting with Multiple Criteria in Excel


Concluding Words

I hope, this article on the uses of the SUMPRODUCT function along multiple columns will now prompt you to apply it in your regular Excel chores. If you got any questions or suggestions let me know through comments. You can check out our other interesting articles related to Excel functions on this website.


Related Articles

Nehad Ulfat

Nehad Ulfat

Hello, Welcome to my profile. I'm a Technical Content Creator as well as a Naval Architect & Marine Engineer. I have preferences to do analytical reasoning & writing articles on various statistical data. Here, you'll find my published articles on Microsoft Excel & other topics related to my interests!

3 Comments
  1. Hi, thank you for your help. Thought you might like to know that your formula
    =SUMPRODUCT(D5:I14,(C5:C14=C10)*(D4:I4=L9)*(B5:B14=L7))
    should be;
    =SUMPRODUCT(D5:I14,(C5:C14=L8)*(D4:I4=L9)*(B5:B14=L7))

    • Hello, MARK EVANS!
      You have pointed out a fantastic thing.
      Your reference is correct. We had an unfortunate mistake in the reference to this formula. There will be L8 at the reference in the place of the C10 reference.
      Thank you for your valuable feedback. We appreciate it so much.
      So, the formula should be:
      =SUMPRODUCT(D5:I14,(C5:C14=L8)*(D4:I4=L9)*(B5:B14=L7))

      Regards,
      Tanjim Reza

  2. This was LIFE CHANGING. I thought I was good at Excel til I saw this. My god!
