Excel is a popular and useful tool for analyzing data and solving mathematical equations. One such case where Excel shines is effortlessly solving simultaneous equations. Keeping this in mind, this article demonstrates 3 useful ways for solving simultaneous equations in Excel.
Download Practice Workbook
You can download the practice workbook from the link below.
3 Ways to Solve Simultaneous Equations in Excel
Say, we have the 2 linear equations that we want to solve for X and Y.
3X – Y = 5
4X – Y = 2
So, let’s see how we can solve simultaneous equations in Excel in order to obtain the values of X and Y.
Here, we have used Microsoft Excel 365 version, you may use any other version according to your convenience.
Method-1: Utilizing MMULT and MINVERSE Functions
Let’s start with the most obvious method of solving simultaneous equations in Excel. Yes, you’re right. we’ll combine the MMULT and MINVERSE functions to obtain the values of X and Y. Therefore, let’s see it in action.

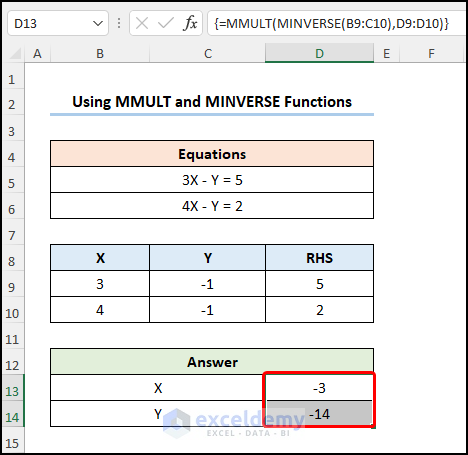

- In the first place, select the D13:D14 cells and enter the following expression.
Here, the B9:C10 and D9:D10 cells represent the X and Y coefficients and the constant values on the right-hand side of the equation.
📃 Note: Please make sure to press the CTRL + SHIFT + ENTER keys on your keyboard since this is an array formula.
- MINVERSE(B9:C10) → returns the inverse matrix for the matrix stored in an array. Here, the function returns the values of the inverse matrix.
- =MMULT(MINVERSE(B9:C10),D9:D10)→ returns the matrix product of two arrays. Here, the function multiplies the inverse matrix array with the values on the RHS and gives the output.
Finally, the results should look like the image shown below.
Method-2: Solving Simultaneous Equations with Excel Add-in
Another simple way to solve simultaneous equations in Excel involves using the Solver Add-in. It’s simple and easy, just follow along.
- First and foremost, move to the C13 cell >> type in the LHS of the linear equation. In this case, the expression is given below.
Here, the D9 and D10 cells indicate the Initial Values of X and Y respectively.
- Similarly, enter the second expression in the C14 cell.
- Secondly, click the File tab at the top-left corner.
- Now, click on Options at the bottom of the window.
- Then, click the Add-ins option >> select the Solver Add-in >> hit the Go button.
Now, this opens the Add-ins dialog box.
- In turn, choose the Solver Add-in option >> click the OK button.
Finally, this adds the Solver Add-in in Excel.
- Thirdly, move to the Data tab >> click on Analyze >> press the Solver option.
- Now, at the Set Objective field type in the C13 cell.
- Afterward, at the To options select the Value Of option and enter the values of the constant, here, it is 5.
- Following this, at the By Changing Variable Cells field, enter the C8:C9 range of cells.
- Subsequently, hit the Add button to set the constraints.
Now, the Add Constraint wizard pops out.
- To begin with, enter the C13 cell reference at the Cell Reference field.
- Next, choose an equal sign (=) from the dropdown list >> type in the D13 cell in the Constraint field >> hit the Add button.
- Then, repeat the same procedure to add a second constraint and click on OK.
- In turn, choose the Simplex LP option in the Select a Solving Method field.
- Eventually, click the Solve button.
- Additionally, insert a check on the Keep Solver Solution option and click OK.
Consequently, the results should look like the screenshot shown below.
Method-3: Solve Simultaneous Equations with 3 Variables Applying Cramer’s Rule
Cramer’s rule is a formula in linear algebra for solving a system of linear equations with multiple unknowns. Here, we’ll employ Cramer’s rule to solve the 3 linear equations with 3 unknowns, so, just follow these simple steps.
- Firstly, proceed to the C11 cell and enter the C6 cell reference.
Here, the C6 cell points to the coefficient of X.
- Next, enter all the values as shown in the image below and press the CTRL + 1 button.
This opens the Format Cells wizard.
- Now, navigate to the Border tab and follow the steps for the Style, Outside Borders as shown in the picture given below.
- Secondly, proceed to the C15 cell >> enter the values from the RHS column.
- Following this, enter the coefficients of Y and Z in the next two columns.
- In a similar fashion, enter the values for Dy in the second column.
- Similarly, repeat the same process for Dz and enter it in the third column.
- Now, jump to the G12 cell and enter the formula below.
In this expression, the MDETERM function calculates the determinant of the C11:E13 array.
- Likewise, compute the determinants of x, y, and z.
- Finally, move to the I6 cell and enter the expression given below.
Here, the G16 and G12 cells represent the values Dx and D respectively.
Subsequently, the output should look like the picture shown below.
Solving Quadratic Equations in Excel
So far, we’ve discussed solving only linear equations, but you can also solve quadratic equations using the Goal Seek option in Excel. So, let’s begin.

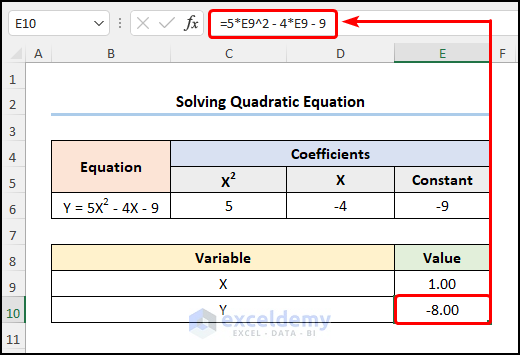

- Firstly, go to the E10 cell and type in the quadratic equation as shown below.
=5*E9^2 - 4*E9 - 9
Here, the E9 cell refers to the values of X.
- Next, move to the Data tab >> click the What-If Analysis drop-down >> select the Goal Seek option.
This opens the Goal Seek wizard.
- Now, in the Set cell field, enter the E10 cell >> next, in the To value field, type in 10 >> then, in the By changing cell option >> select the E9 cell.
Lastly, your output should look like the screenshot given below.
Solving Linear Equations in Excel Using Solver
For our last method, we’ll demonstrate how to solve linear equations with Excel’s Solver Add-in. Hence, let us see the process in detail.

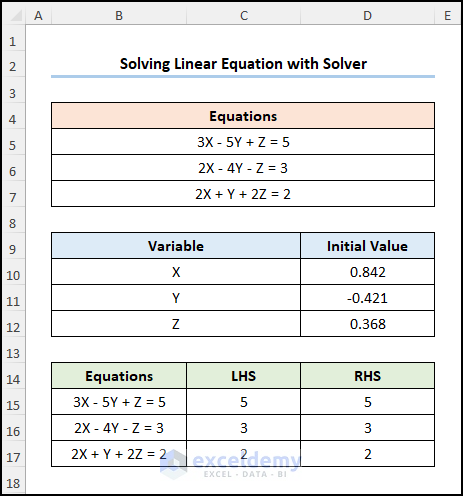

- Initially, navigate to the C15 cell and type in the linear equation as shown in the picture below.
Here, the D10, D11, and D12 cells indicate the Initial Values of X, Y, and Z.
Likewise, repeat the same process for the other two equations.
- Secondly, navigate to the Data tab >> click the Analyze drop-down >> choose the Solver option.
- Thirdly, follow the detailed steps described in Method 2.
Eventually, your output should look like the image given below.
We have provided a Practice section on the right side of each sheet so you can practice yourself. Please make sure to do it by yourself.
I hope all of the methods mentioned above for solving simultaneous equations in Excel will prompt you to apply them more effectively. If you have any questions or feedback, please let me know in the comment section. Or you can check out our other articles related to Excel functions on this website.
