Excel Cursor Movement: Logical vs Visual

If you are looking for the differences between Excel cursor movement Logical vs Visual, then this article is going to serve this purpose. So, let’s get started with the main article to know about the differences between these cursor movement differences, and ways of changing them easily.

Download Workbook


Introduction of Excel Cursor Movement: Logical vs Visual

In Excel, there are 2 types of cursor movements available; Logical and Visual.

Logical Cursor Movement:
As the name suggests the cursor movement here occurs logically. Firstly it defines the language written and then moves in a logical order from left to right or right to left.
This feature is useful for bidirectional texts or a mixture of two languages that move in two directions. The cursor movement will follow the logical order of each language in this combined string automatically.
Example of the languages which move from right to left is Arabic, Hebrew, Pashto, etc.

Visual Cursor Movement:
In this case, the cursor movement will not maintain any logical order, either it will move from left to right or right to left neglecting the text language. For bidirectional texts, this movement is not much helpful.
This type of movement will not follow any order of any language in these mixed-up languages rather than it will maintain the same direction from which it started moving.

To illustrate the differences between these two types of cursor movements explicitly, we are going to use the following dataset of a college. Here, we can see in the Student Name column there is a mixed-up of 2 languages; English and Arabic.
The English language moves from left to right whereas the Arabic language moves from right to left.
So, we can say in this column we have the names as Bi-directional texts.

Excel cursor movement logical vs visual

We have used Microsoft Excel 365 version here, you can use any other versions according to your convenience.


How to Change Excel Cursor Movement Logical vs Visual

Here, we will show you the ways of changing the type of cursor movement in Excel easily. The two ways will be described here; Excel Options, and VBA code.

Excel cursor movement logical vs visual


Method-1: Using Excel Options

In this section, we will show the way to change the cursor movement by using the in-built option of Excel.

Steps:
➤ Go to the File Tab.

Excel cursor movement logical vs visual

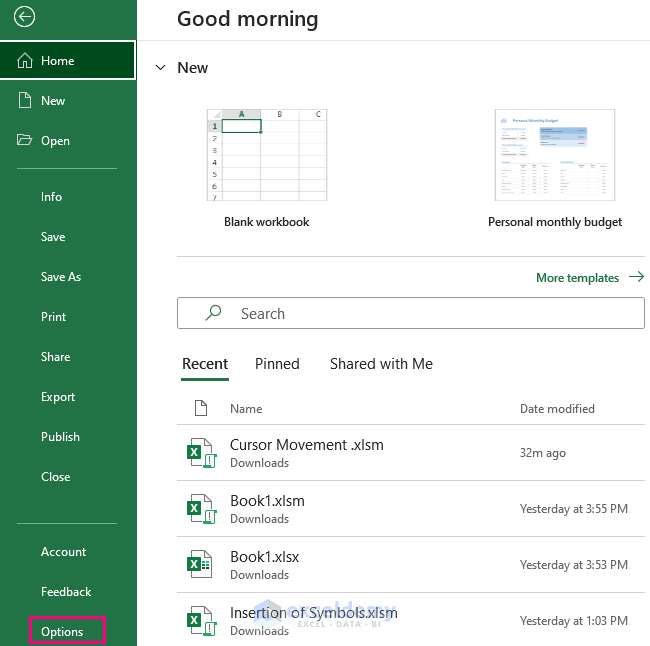

➤ Select the Options Option.

Excel Options

After that, the Excel Options dialog box will open up.
➤ Select the Advanced option in the left pane and then select the Editing Options in the right part.
➤ Finally, you can choose the Logical or Visual option under the Cursor movement and then press OK.

Excel Options

Read More: How to Move Cursor in Excel Cell (2 Useful Methods)


Method-2: Using VBA to Change Cursor Movement

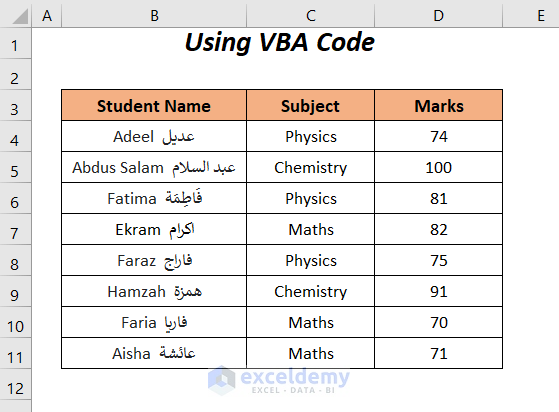

Here, we are going to use a VBA code to change the type of cursor movement in Excel easily.

Excel cursor movement logical vs visual

Steps:

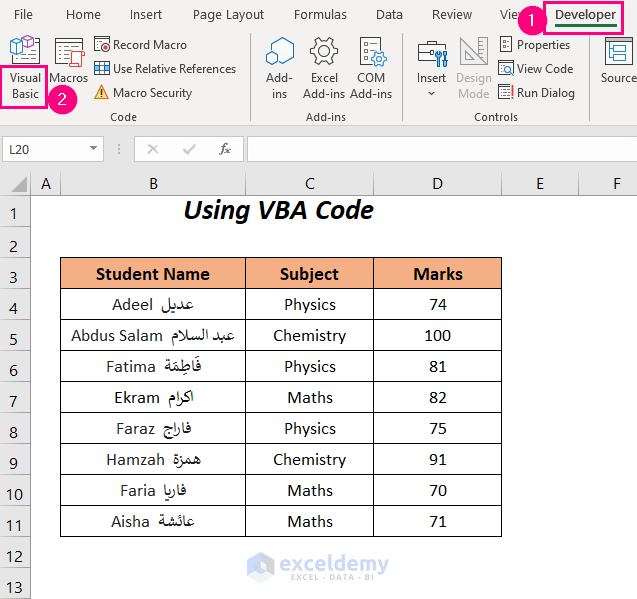

➤ Go to the Developer Tab >> Code Group >> Visual Basic Option.

VBA code

Then, the Visual Basic Editor will open up.

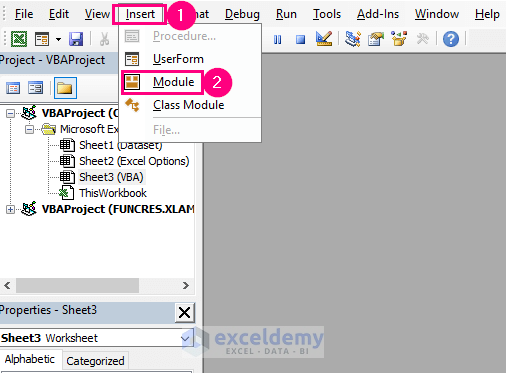

➤ Go to the Insert Tab >> Module Option.

VBA code

After that, a Module will be created.

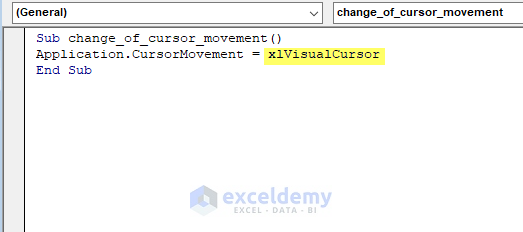

➤ Write the following code to change the cursor movement as the Visual movement.

Sub change_of_cursor_movement()
Application.CursorMovement = xlVisualCursor
End Sub

VBA code

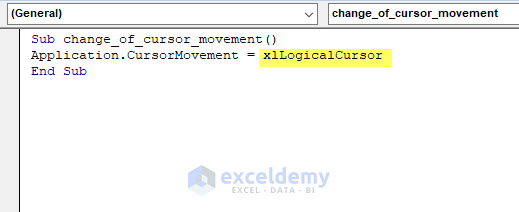

➤ For changing the movement to the Logical cursor movement use the following code.

Sub change_of_cursor_movement()
Application.CursorMovement = xlLogicalCursor
End Sub

VBA code

After pressing F5, the change of the cursor movement will be applied automatically.


Similar Readings


Example of Excel Cursor Movement Logical vs Visual

In this section, we will delineate the differences between these cursor movements with the help of examples.


Case-1: Moving Cursor from Left to Right

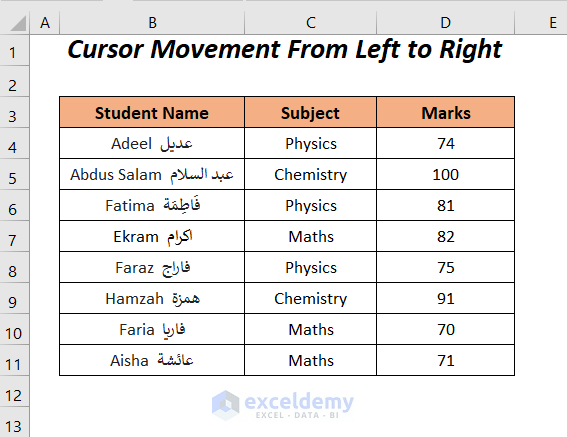

Firstly, we will move our cursor from the left direction to the right direction.

Excel cursor movement logical vs visual

Logical Movement:

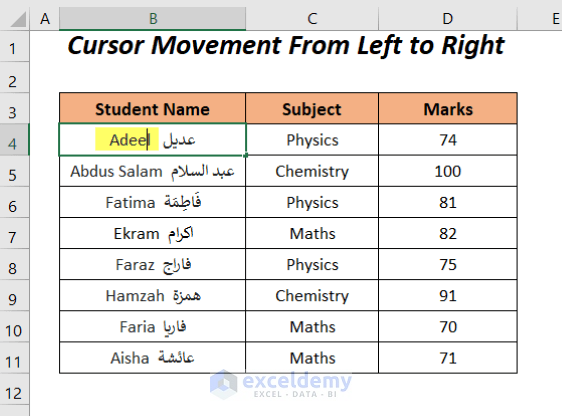

After setting the cursor movement as Logical click on cell B4 twice and keep your cursor at the beginning position of the English text.

left to right logical

Now, start moving your cursor to the right by pressing the Right key ()
Then, you will get the following movements from the left to right in the English text Adeel.

Excel cursor movement logical vs visual

left to right logical

left to right logical

Excel cursor movement logical vs visual

left to right logical

When you will press the Right key after the end of the English name, notice that the cursor has automatically moved to the beginning of the Arabic name عديل.

Excel cursor movement logical vs visual

And then by pressing the Right key the cursor will move from the right to the left direction as the Arabic text is from the right to the left.

left to right logical

Excel cursor movement logical vs visual

left to right logical

left to right logical

Visual Movement:
Changing the cursor movement as Visual click on cell B4 twice and keep your cursor at the beginning position of the English text.

Excel cursor movement logical vs visual

Now, start moving your cursor to the right by pressing the Right key ()
Then, you will get the following movements from the left to right in the English text Adeel.

left to right visual

Excel cursor movement logical vs visual

left to right visual

left to right visual

left to right visual

When you will press the Right key after the end of the English name, notice that the cursor is moving in the right direction although the Arabic text direction is different from the English one.

Excel cursor movement logical vs visual

And then by pressing the Right key the cursor will move from the left to the right direction not maintaining the logical order of the Arabic language.

left to right visual

left to right visual

Excel cursor movement logical vs visual

left to right visual

Read More: [Fixed:] Cursor Keys Not Working in Excel (8 Possible Solutions)


Case-2: Moving Cursor from Right to Left

We will try to show the movement starting from the Arabic name which means from the right to the left direction here.

Excel cursor movement logical vs visual

Logical Movement:

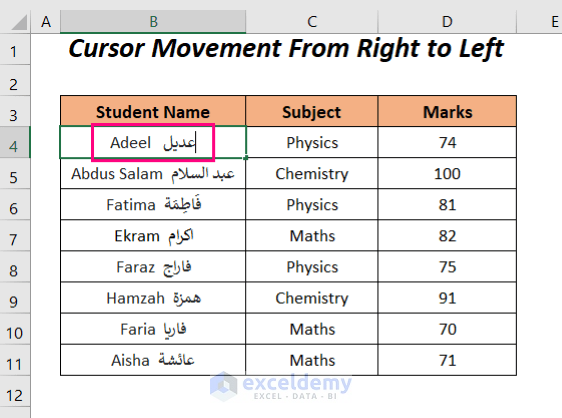

After setting the cursor movement as Logical click on cell B4 twice and keep your cursor at the beginning position of the Arabic text.

right to left logical

Now, start moving your cursor to the left by pressing the Left key ()
Afterward, you will get the following movements from the left to right in the Arabic name عديل.

Excel cursor movement logical vs visual

right to left logical

right to left logical

Excel cursor movement logical vs visual

At the moment of pressing the Left key after the end of the Arabic name, observe the cursor movement to the beginning of the English name Adeel.

right to left logical

And then by pressing the Left key the cursor will move from the left to the right direction as the English text progress from the left to the right.

right to left logical

Excel cursor movement logical vs visual

right to left logical

right to left logical

right to left logical

Visual Movement:
Changing the cursor movement as Visual click on cell B4 twice and keep your cursor at the beginning position of the Arabic text.

Excel cursor movement logical vs visual

Then, start moving your cursor to the left by pressing the Left key ()
After that, you will get the following movements from the left to right in the Arabic name عديل.

right to left visual

Excel cursor movement logical vs visual

right to left visual

right to left visual

When you will press the Left key after the end of the Arabic name, you will see the movement of the cursor is in the same direction although the direction of the English name is from left to right.

Excel cursor movement logical vs visual

right to left visual

right to left visual

right to left visual

right to left visual

Excel cursor movement logical vs visual

Read More: [Fixed!] Excel Cursor Locked in Select Mode (6 Possible Solutions)


Practice Section

For trying out these two types of cursor movement by yourself we have provided a Practice section like below in a sheet named Practice. Do it by yourself.

Practice


Conclusion

In this article, we tried to cover the differences between Excel cursor movement Logical vs Visual. If you have any suggestions or questions, feel free to share them in the comment section. For more Excel-related articles you can explore our Exceldemy site.
