Al Arafat Siddique
This article illustrates 4 different examples to filter a dataset based on a cell value that is on another sheet using VBA code in Excel. We’ll use Excel’s built-in Range.AutoFilter method to illustrate these examples using its different properties.
Download Practice Workbook
Download this practice workbook to exercise while you are reading this article.
4 Examples to Filter Data Based on Cell Value on Another Sheet Using VBA in Excel
Let’s introduce our dataset first. Here we have a list of sale details for 4 different products from 2 categories. We want to filter this dataset based on a cell value that is on another sheet.
Introduction to the Range.AutoFilter Method
In the following examples, we’ll use the Range.AutoFilter method in our VBA code to filter a dataset using the AutoFilter. The method has several arguments to operate with. The syntax is-
expression.AutoFilter(Field, Criteria 1, Operator, Criteria 2, SubField, VisibleDropDown)
In the above arguments-
Field– We need to put an integer offset of the field to set the filter on the dataset. The count starts from the leftmost side of the dataset as one.
Criteria 1 – We can use “=” for blank cells, “<>” for non-blank cells, and “><” to select fields in data types. If this optional argument is omitted, then the method would set the criteria as All.
Operator – This is a XLAutoFilterOperator to specify the filter type, for example, xlAnd and xlOr are used to set multiple criteria options.
Criteria 2 – We can create compound filter criteria by using this 2nd argument along with Criteria 1 and Operator.
SubField – We can also apply criteria on the field from a data type.
VisibleDropDown – The AutoFilter dropdown arrow can be displayed or hidden with values True and False consecutively.
Write Code in Visual Basic Editor
To filter data based on cell value on another sheet, we need to open and write VBA code in the visual basic editor. Follow the steps to open the visual basic editor and write some code there.
- Go to the Developer tab from the Excel Ribbon.
- Click the Visual Basic option.
- In the Visual Basic for Applications window, click the Insert dropdown to select the New Module option.
Now put your code inside the visual code editor and press F5 to run it.
1. Filter with Single Criteria Based on Cell Value on Another Sheet Using VBA in Excel
Task:
To filter the dataset (Sheet1) based on a cell value that is on another sheet (Sheet2). We want to filter the dataset for the Fruits category.
Solution:
We need to set the arguments in the Range.AutoFilter method to use in our code.
Field – 2, as the 2nd column represents the category names.
Criteria1– the cell reference of the value Fruits in Sheet2.
VisibleDropDown– True
VBA Code:
Put the following code in the visual basic editor and press F5 to run it.
Option Explicit
Sub FilterBasedOnCellValueAnotherSheet()
Dim category As Range
With Worksheets("Sheet2")
Set category = .Range("C2")
End With
With Worksheets("Sheet1")
With .Range("B4:G13")
.AutoFilter Field:=2, Criteria1:=category, VisibleDropDown:=True
End With
End With
End SubIn the above code, we set the source data range as B4:G13 in Sheet1 and the cell reference for criteria1 is C2 (variable named as “category”) in Sheet2.
Output:
The dataset is filtered for the products that belong to the Fruits category.
Read More: How to Filter by List in Another Sheet in Excel (2 Methods)
2. Run a VBA Code to Filter with Multiple Criteria Using OR Operator Based on Cell Value on Another Sheet
Task:
To filter the dataset (Sheet3) based on cell values that are on another sheet (Sheet4). We want to filter the dataset for the products that are either Apple or Tomato.
Solution:
We need to set the arguments in the Range.AutoFilter method to use in our code.
Field – 3, as the 3rd column represents the product names.
Criteria1– the cell reference of the value Apple in Sheet4.
Operator- xlOr
Criteria2- the cell reference of the value Tomato in Sheet4.
VisibleDropDown– True
VBA Code:
Put the following code in the visual basic editor and press F5 to run it.
Option Explicit
Sub FilterBasedOnCellValueAnotherSheet()
Dim product1, product2 As Range
With Worksheets("Sheet4")
Set product1 = .Range("C2")
Set product2 = .Range("E2")
End With
With Worksheets("Sheet3")
With .Range("B4:G13")
.AutoFilter Field:=3, Criteria1:=product1, Operator:=xlOr, Criteria2:=product2
End With
End With
End SubOutput:
The dataset is filtered for the products that are either Apple or Tomato.
Read More: Filter Multiple Criteria in Excel with VBA (Both AND and OR Types)
Similar Readings
- How to Filter Excel Pivot Table (8 Effective Ways)
- How To Search Multiple Items in Excel Filter (2 Ways)
- Filter Multiple Criteria in Excel (4 Suitable Ways)
- How to Filter Multiple Columns Simultaneously in Excel (3 Ways)
- How to Use Text Filter in Excel (5 Examples)
3. Filter with Multiple Criteria using AND Operator Based on Cell Value on Another Sheet Using VBA in Excel
Task:
To filter the dataset (Sheet5) based on cell values that are on another sheet (Sheet6). We want to filter the dataset for the products that have quantities greater than 50 but less than 60.
Solution:
We need to set the arguments in the Range.AutoFilter method to use in our code.
Field – 4, as the 4th column represents the quantity of the products.
Criteria1– the cell reference of the quantity 50 in Sheet4.
Operator- xlAnd
Criteria2- the cell reference of the quantity 60 in Sheet4.
VisibleDropDown– True
VBA Code:
Put the following code in the visual basic editor and press F5 to run it.
Option Explicit
Sub FilterBasedOnCellValueAnotherSheet()
Dim product1, product2 As Range
With Worksheets("Sheet6")
Set product1 = .Range("D2")
Set product2 = .Range("F2")
End With
With Worksheets("Sheet5")
With .Range("B4:G13")
.AutoFilter Field:=4, Criteria1:=">" & product1, Operator:=xlAnd, Criteria2:="<" & product2
End With
End With
End SubOutput:
The dataset is filtered for the products having quantities greater than 50 but less than 60.
Read More: Filter Different Column by Multiple Criteria in Excel VBA
4. Use of Drop Down List to Filter Data Based on Cell Value in Another Sheet in Excel VBA
Task:
To filter the dataset (Sheet7) based on a cell value that is on another sheet (Sheet8). We want to filter the dataset for the categories using a Drop-Down list in another sheet.
Solution:
We need to set the arguments in the Range.AutoFilter method to use in our code.
Field – 2, as the 2nd column represents the category names.
Criteria1– the cell reference of the category name in Sheet8.
VisibleDropDown– True
Create a Drop-Down List in Excel
To make a drop–down list, just follow the simple steps below-
- Select a cell (C2 in sheet 8) on which we’ll create the drop-down list.
- Then go to the Data tab of the Excel Ribbon.
- Click on the Data Validation button.

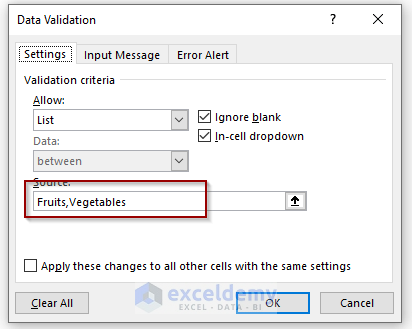

- In the Data Validation window, select the Setting tab (By default selected).
- In the Allow drop-down list, choose the List option.
- Then type Fruits and Vegetables in the Source input box separated by a comma and finally hit OK.
- As an output, we can see a drop-down list in cell C2 with two options to select.
VBA Code:
Put the following code in the visual basic editor and press F5 to run it.
Option Explicit
Sub FilterBasedOnCellValueAnotherSheet()
Dim category As Range
With Worksheets("Sheet8")
Set category = .Range("C2")
End With
With Worksheets("Sheet7")
With .Range("B4:G13")
.AutoFilter Field:=2, Criteria1:=category, VisibleDropDown:=True
End With
End With
End SubOutput:

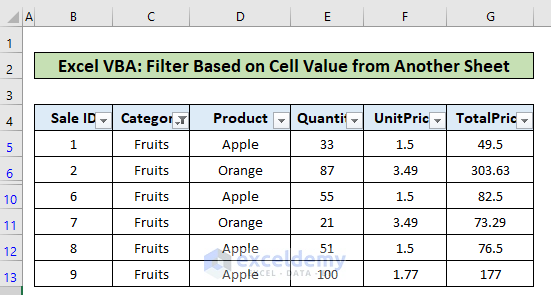

The dataset is filtered for the products that belong to the Fruits category.
If we change the selection in the drop–down list to vegetables, the dataset will be filtered for the products of the category vegetables.
Read More: How to Filter Based on Cell Value Using Excel VBA (4 Methods)
Things to Remember
- The AutoFilter method allows us to filter a dataset with a lot of flexibility. The xlAutoFilterOperator had different options to set a filter with multiple criteria.
- We used the With…End With statement to run a repetitive task in our code.
Conclusion
Now, we know how to filter data based on cell values on another sheet using Excel’s built functions with examples. Hopefully, it would help you to use the functionality more confidently. Any questions or suggestions don’t forget to put them in the comment box below.
