How to Copy Chart in Excel Without Linking Data (with Easy Steps)

Get FREE Advanced Excel Exercises with Solutions!

You have come to the right place if you are looking for the answer or some unique tips to copy chart without linking data in Excel. There are some ways to copy chart without linking data in Excel. This article will walk you through each and every step with appropriate examples. As a result, you can use them easily for your purpose. Let’s move on to the article’s main discussion.


How to Copy Chart Without Linking Data in Excel: Step-by-Step Procedures

In this section, I will show you the quick and easy steps to copy chart without linking data in Excel on the Windows operating system. This article contains detailed explanations with clear illustrations for everything. I have used the Microsoft 365 version here. However, you may use any other version depending on your availability. Please leave a comment if any part of this article does not work in your version.

Here, I have a dataset of some students with marks of a specific subject and the probability distribution value according to the mark. After creating the normal distribution curve I want to copy the chart only without linking any data. Go through the article for the procedures.

Dataset to Copy Chart Without Linking Data in Excel


Step 1: Copy the Chart

After creating the chart, first, you have to copy the chart. You can copy the chart by clicking the simple shortcut Ctrl+C on the keyboard. Alternatively, you can right-click on the chart to open the context menu and select the Copy option.

Copying an Excel Chart

Read More: How to Copy a Chart to Another Sheet in Excel


Step 2: Paste the Chart as an Image

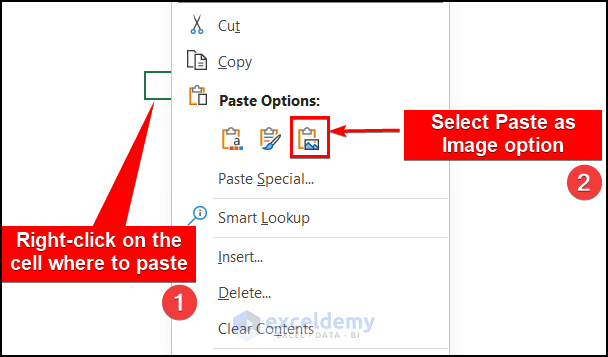

Then, go to the cell where you want to paste the chart without linking the dataset.

  • Then, right-click on the cell to open the context menu.
  • Here, select the Paste Image icon under the Paste Options.
Paste as Image Shortcut: Ctrl + Alt + V

Paste the Chart as Image without linking data

  • As a result, you will see there will create a new chart like the previous one. But when you click on the new one, you will see that it is actually an image. So, there will be no link with the dataset.

 Copy Chart as an image Without Linking Data in Excel

  • Now, change some values in the dataset to check whether you are succeeded or not. When you change the dataset, you will see the previous chart is changing with the dataset but the new one which is actually an image is not changing.


How to Copy Chart Without Source Data and Retain Formatting in Excel

Sometimes, you may want to copy the format of the chart, not the data, and apply the format to other charts. For this, you have to follow the below procedures.

📌 Steps:

  • First, you have both charts ready with the dataset in an Excel worksheet.

  • Now, copy the formatted chart using the Ctrl+C shortcut.
  • Then, select another chart at which you want to paste the format only and go to the Home tab in the top ribbon.
  • After that, click on the Paste option and select the Paste Special option.

going to the paste special option in Excel

  • In the Paste Special pop-up window, select the Format option and press OK.

paste special window

  • As a result, you will see that another chart is also formatted with the same pattern as the previous one.

Copy Chart Without Source Data and Retain Formatting in Excel

Read More: How to Duplicate Chart with Different Data in Excel


How to Unlink Chart from Source Data in Excel

Also, sometimes you may want to unlink the chart from the source data in Excel. You can use a simple VBA code to do this. For this, follow the below steps:

📌 Steps:

  • First, create the dataset and chart.

  • For this, first, go to the top ribbon, press on the Developer, and then press on the Visual Basic option from the menu.

You can use ALT + F11 to open the “Microsoft Visual Basic for Applications” window if you don’t have the Developer tab added.

Microsoft Visual Basic for Applications

  • Now, a window named “Microsoft Visual Basic for Applications” will appear. Here from the top menu bar, press on the “Insert” And a menu will appear. From them, select the “Module’” option.

insert module

  • Now, a new “Module” window will appear. And Paste this VBA code into the box.
Sub UnlinkChartData()
  If ActiveChart Is Nothing Then
    MsgBox "Please, Select a chart!", vbExclamation, "No Chart Selected"
  Else
    Dim ser As Series
    For Each ser In ActiveChart.SeriesCollection
      ser.XValues = ser.XValues
      ser.Values = ser.Values
      ser.Name = ser.Name
    Next ser
  End If
End Sub

VBA code to Unlink Chart from Source Data in Excel

  • To run the code go to the top menu, first select the chart from the worksheet, then press on the Run option, and here will open some other options select the Run Sub/UserForm also you can simply press F5 to run the code.

Run VBA Code

  • Now, change some values in the dataset and you will see no change in the chart as the chart has become unlinked from the dataset.

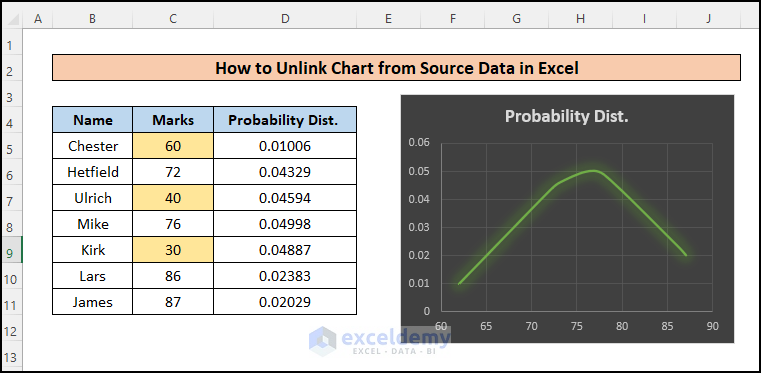

How to Unlink Chart from Source Data in Excel using vba code

Read More: How to Copy Chart Format in Excel


Download Practice Workbook

You can download the practice workbook from here:


Conclusion

In this article, you have found how to copy a chart without linking data in Excel. I hope you found this article helpful. You can visit our website to get more Excel-related content. Please leave comments, suggestions, or queries if you have any in the comment section below.
