Microsoft Excel users often encounter the “Compile Error in Hidden Module” issue. It generally occurs while running any code in Microsoft Visual Basic for Applications in Excel. There are multiple reasons behind this issue. Therefore, in this Excel tutorial, we will find out how to fix Compile Error in Hidden Module in Excel with 6 possible reasons and their solutions.
The above overview image shows unprotecting the VBA module to solve the issue. This is one of the reasons. Follow below to see other reasons and solutions.
What Is Compile Error in Hidden Module in Excel VBA?
Compile Error in Hidden Module is a kind of security alert in Excel VBA. It generally occurs when the VBA code is not compatible with the version or architecture of the Excel application. As a result, when we try to run the code, it pops up the alert.
Compile Error in Hidden Module in Excel: 6 Possible Reasons with Solutions
In this section, we will discuss six reasons that generate Compile Error in Hidden Module in Excel. Along with it, we will demonstrate solutions for each of them.
Reason 1: You Have Password-Protected VBA Module
Any kind of VBA module that is password-protected will act as a hidden module. You need to have full access to this kind of Excel file. Otherwise, it will require permission from its owner.
Solution: Unprotect VBA Module to Solve Compile Error in Hidden Module in Excel
To fix this error, follow the steps below.
- First, we need to enable the Developer tab.
- For this, go to the File window.
- Then, select Option in the Overview Panel.
- Afterward, choose the Customize Ribbon tab.
- Following this, check the Developer feature under Customize the Ribbon.
- Lastly, click OK to close the Excel Options box.
- Now, go to the Developer tab and select Visual Basic under the Code section.
- Then, right-click on the hidden nodule and select VBAProject Properties.
- Next, VBAProject – Project Properties window will appear.
- Here, go to the Protection tab and remove the password.
- Lastly, press OK.
- Finally, the code will run smoothly in Excel.
Read More: VBA Object Variable or with Block Variable Not Set in Excel
Reason 2: Missing References in Visual Basic Editor
In Excel VBA, if you want to work with Objects available in different applications, you need to add a reference to the object library of that application. But the unavailability of those specific references will result in Compile Error in Hidden Module.
Solution: Activate Missing References in VBE to Remove Compile Error in Hidden Module in Excel
To solve this issue, you need to enable any kind of missing references in the Visual Basic Editor. For this, follow the steps below.
- First, open Developer > Visual Basic on your workbook.
- Then, select References from Tools.
- After that, scroll down through the list of Available References that you want to activate.
- In this case, mark the Microsoft Word 16.0 Object Library reference to enable.
- Lastly, press OK to close the window.
- Finally, try to run the VBA code and you will not get the error anymore.
Read More: [Fixed!] Subscript Out of Range Error in Excel VBA
Reason 3: MS Excel Containing Template Files of Add-ins
Any kind of third-party Excel Add-ins (such as Adobe Acrobat PDF Maker) can boost the functionality of Excel. However, when these add-ins are incompatible with the VBA project, it will cause a compile error in hidden modules.
Solution: Remove External Add-ins to Fix Compile Error in Hidden Module in Excel
This error can be solved from the Excel Developer tab and the Excel Start-up Folder as well. Let’s see how it works in both cases.
1. Remove Add-ins from Developer Tab
To erase add-ins from the Developer tab, follow the steps below.
- First, open Excel Add-ins from the Developer tab.
- Then, uncheck the add-ins that you don’t require.
- Lastly, press OK and you will successfully solve the Compile Error in Hidden Module.
2. Remove Add-ins from Excel Start-up Folder
Follow the steps below to remove any unnecessary add-ins from the Excel Start-up Folder.
- In the beginning, close all the opened Excel files.
- Then, go to the File Explorer of your device.
- Here, open the XLSTART folder which is located in C:\Users\USERNAME\AppData\Roaming\Microsoft\Excel\
- Lastly, remove every unused XLA or XLAM.
- Finally, restart Excel and the error will be fixed.
Read More: Reasons And Solutions for Excel Object Required Error in VBA
Reason 4: Incorrect Syntax in VBA Code
If the solutions above don’t fix the issue from inside Excel, then there must be an incorrect syntax in the VBA code running.
Solution: Fix Syntax Error in VBA Code to Solve Compile Error in Hidden Module
To determine the syntax error to solve, go through the process below.
- First, press Alt + F11 on your keyboard to open the Visual Basic Editor.

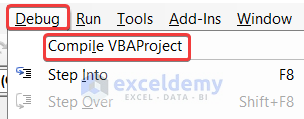

- Then, click on Compile VBAProject under Debug tab while your code is opened.
- As a result, it will show the Syntax error alert highlighting the location in the code.
- Next, press OK and then correct the code where highlighted.
- Lastly, open Debug again and you will see the Compile VBAProject option is greyed out. It means, the code is successfully compiled and the error is resolved.
Read More: [Fixed!] Excel Application-Defined or Object-Defined Error in VBA
Reason 5: Unsupported Registered OCX Files
OCX file is a form of Windows ActiveX Control file. It helps to customize and reuse user interface design. Any kind of unregistered or incompatible OCX file may result in Compile Error in Hidden Module in Excel.
Solution: Use Command Prompt (CMD) to Re-register OCX Files to Fix Compile Error in Hidden Module in Excel
To solve this issue, we need to register that specific OCX file again. Let’s see how it works.
- In the beginning, press the Windows icon on your keyboard and then press the R button to open the Run box.
- Here, type cmd and press OK.
- Lastly, type one of the following commands based on your system version in the Command Prompt (cmd).
- In 32-bit version type:
regsvr32 -u c:\windows\system32\mscomctl.ocx
regsvr32 c:\windows\system32\mscomctl.ocx
- In 64-bit version type:
regsvr32 -u c:\windows\syswow64\mscomctl.ocx
regsvr32 c:\windows\syswow64\mscomctl.ocx
- Finally, run Excel and you will not receive the Compile Error in Hidden Module issue.
Read More: [Fixed!] Invalid Forward Reference in VBA
Reason 6: Unwanted .exd Files in Device Folders
In the device folders, .exd files are stored to allow additional controls in much less time. But when it’s not aligned with the application, it causes a compile error.
Solution: Delete .exd Files to Repair Compile Error in Hidden Module in Excel
We need to remove these unwanted .exd files to solve this issue. For this, follow the steps below.
- First, open Run.
- Then, type %appdata% and press OK.
- Afterward, it will open the Application Data Folder.
- Here, open the Microsoft folder.
- Following this, open the Forms folder.

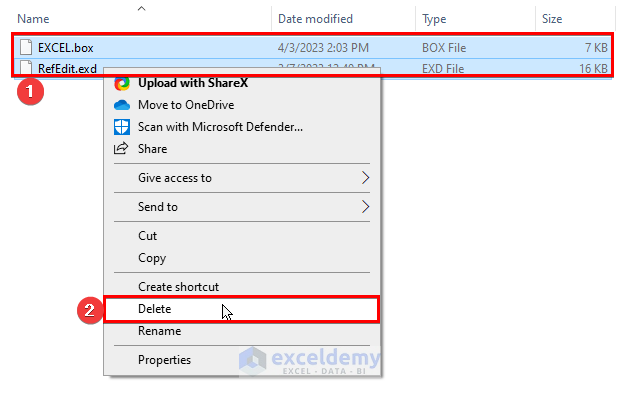

- Inside the Forms folder, select the files and then right-click to select Delete to remove them as shown below.
- Finally, restart the Excel file and the error will be solved.
Read More: [Fixed!] Unable to Set the Visible Property of the Worksheet Class
How to Externally Solve Compile Error in Hidden Module for Excel
If the above solutions do not work entirely, then you can try the following methods that will externally solve the Compile Error in Hidden Module in Excel.
Method 1: Move Adobe Acrobat PDF Maker Files
If you have installed Adobe Acrobat PDF Maker on your device, then you need to relocate the pdfmaker.dot file and pdfmaker.xla files to a different location. For this, follow the steps given below:
- In the beginning, select the Windows icon and input * in the search bar.
- Then, select the files and folders on the appeared window.
- Following this, in the All or part of the file name type * and search for it.
- Next, select the dot & pdfmaker.xla files in the folder > right-click > select the Cut option.
- Lastly, Paste it where you wish on your Desktop to solve the error.
Read More: Because of Your Security Settings Macros Have Been Disabled
Method 2: Update Available Latest Version of Adobe Acrobat
You may need to update your installed Adobe Acrobat software.
- For this, click on Help in Adobe’s window.
- Then, choose the Check for Updates option to open the updater window.
- Lastly, press the Download and Install button in case of any updates are required.
Method 3: Uninstall Norton Antivirus Software from Device
To solve the error, it is advisable to uninstall the Norton Antivirus Software from your device rather than update it.
- For this, press Windows + R on your keyboard to open Run.
- Then, type cpl in Run, and click on the OK button.
- Lastly, select the Norton Antivirus software from the list and click on the Uninstall button to remove the software after confirmation.
Read More: [Fixed!] Method Open of Object Workbooks Failed
Frequently Asked Questions
1. How can I open Excel in safe mode?
To open Excel in safe mode, press and hold the Ctrl button while opening the file. You can also apply the safe switch (such as excel.exe/safe) while starting the program from the command line.
2. How can I Repair MS Excel when it Crashes?
Microsoft has introduced MS Excel Repair Tool which can quickly fix when it crashes. This handy tool is available in all Excel versions. This tool helps to sort damaged, corrupted, or inaccessible Excel files. It also recovers erased or lost data from Excel spreadsheets, cell comments, pivot charts, functions, formulas & lots more.
Conclusion
Finally, we are at the conclusion of our article. Here, we tried to explain how to fix Compile Error in Hidden Module in Excel. We demonstrated 6 possible reasons for this error and tried to solve each of them carefully. We also explained the methods to solve this error externally. Let us know your feedback in the comment section. Follow ExcelDemy for more articles like this.
